Outdoor Flood Light LED 100w 120watt
MIC MFL-G120
Quick info

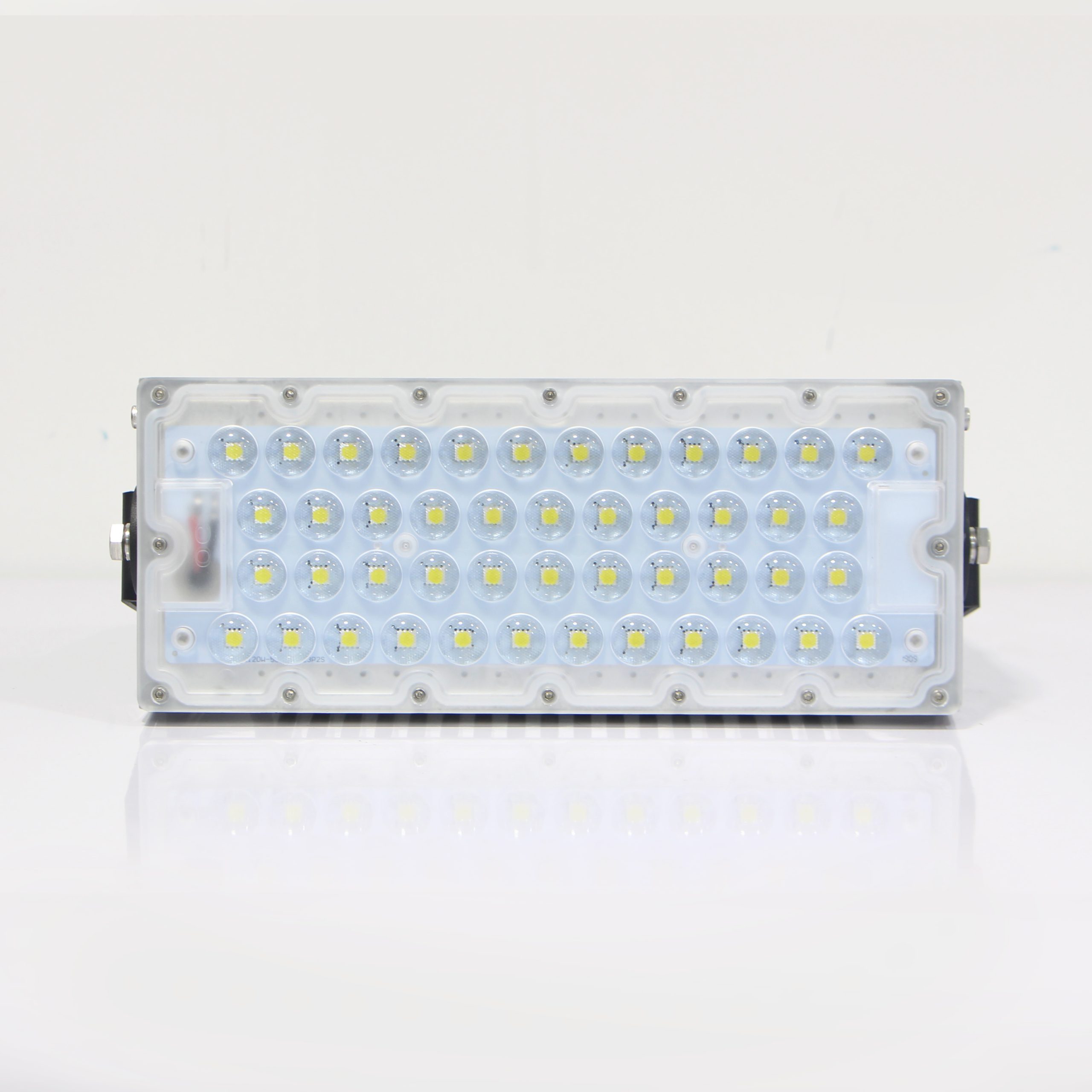

1 modules, 46pcs LED, Symmetrical: 20°/40°/60°/90°,Asymmetrical: 100°×140,160lm/W, meanwell driver, price USD86.6
- Description
- Specification
outdoor flood light led waterproof 360W for outdoor are mainly used in single buildings, exterior wall lighting of historical buildings, building interior and
exterior lighting, green landscape lighting, billboard lighting, medical and cultural and other special facilities lighting, bars,
stadiums, stadiums, squares , Railway stations, ships, construction sites, tower cranes, and other lighting.
outdoor flood light led 120W Module design high pole light projector for high power stadium lighting
- Patent private mould, integrated die-casting AL.
- High efficiency, 200lm/w available.
- Professional anti-glare lens：PC full cutoff lens 20°/40°/60°/90°/100°x140°.
- 0/1-10V dimming, time control, light sensing, iot control and other functions are optional.
- It is easier to install with laser pen assisted direction.
- The protection level is IP66/IK08.
- The angle of each module and the angle of the entire lamp can be adjusted.
- Toughened glass panel, fixed without glue.
- PLC or Lorawan can be used for remote intelligent control.
- Meanwell/Moso/Sosen/Inventronics driver.
MFL-G series flood light case of Motorcycle Kart Racing Trackotball stadium lighting in malaysia.
Click to download the flood light certificate
Certificate
LM-79,LM-80,LM-82,UL 1598,IEC 60598,IESNA,CIE,ANSI,NEMA,ANSLG C78.377-2008,JEDEC,ASTM,ISO 9227,IEEE Std 519 1992,EMC,IK08,IK10,IP66,IEC 62471,RoHS,CB,ENEC,SASO,SABER,IECEE,Energy Label,ISO45001,ISO9001,ISO14001,TM21,IP66
Enforce standards
IEC 60598,IEC 60068,IEC 62471,IEC 60529,EN 55015,EN 60529,EN 50102,EN 61347,EN61384,EN 61547,EN 62493,IEC 62262,EN61000,EN 61547,IEC 62262,IEC 60068,ISO2039,ISO6508,IEC 62031,IEC 62778,TR 62778,IEC 62493,IEC 60384,IEC 60065,IEC 61032,IEC 60570,IEC 60664,IEC 61347,IEC 60227,IEC 60245,IEC 60603,IEC 62680,IEC 60320,IEC 61535,IEC 61984,IEC 60083,IEC 62209,IEC 62232,IEC 62493,EN 50525,IEC 62321,IEC 61643,IEC 60112,EN 60598-2-3:2003,EN IEC 60598-1,IEC 60598-2-3,IEC 60598-1,IEC 55015,IEC 61000,IEC61547
outdoor flood light led 120W IP66/IK08 20KV spd LoRaWan, 0/1-10V dimming, time control, light sensing, iot control smart intelligent automation system
The picture above is the packing box and lighting effect of MFL-G flood light, the following is a detailed introduction to this flood light.
Hoods, spotting hoods, can change the angle of light and lower the UGR value, increasing the brim of the hat will have an additional cost increase.
Each module can be adjusted individually, and the angle of the stand can also be adjusted individually.
The dense heat dissipation fins can quickly dissipate the heat. Reduce the temperature of the LED beads
Cable connectors that meet UL standards, IP68 waterproof grade
PC Lens, we choose high light transmittance and good quality. There are 25/40/60/90 degrees different angles to choose from

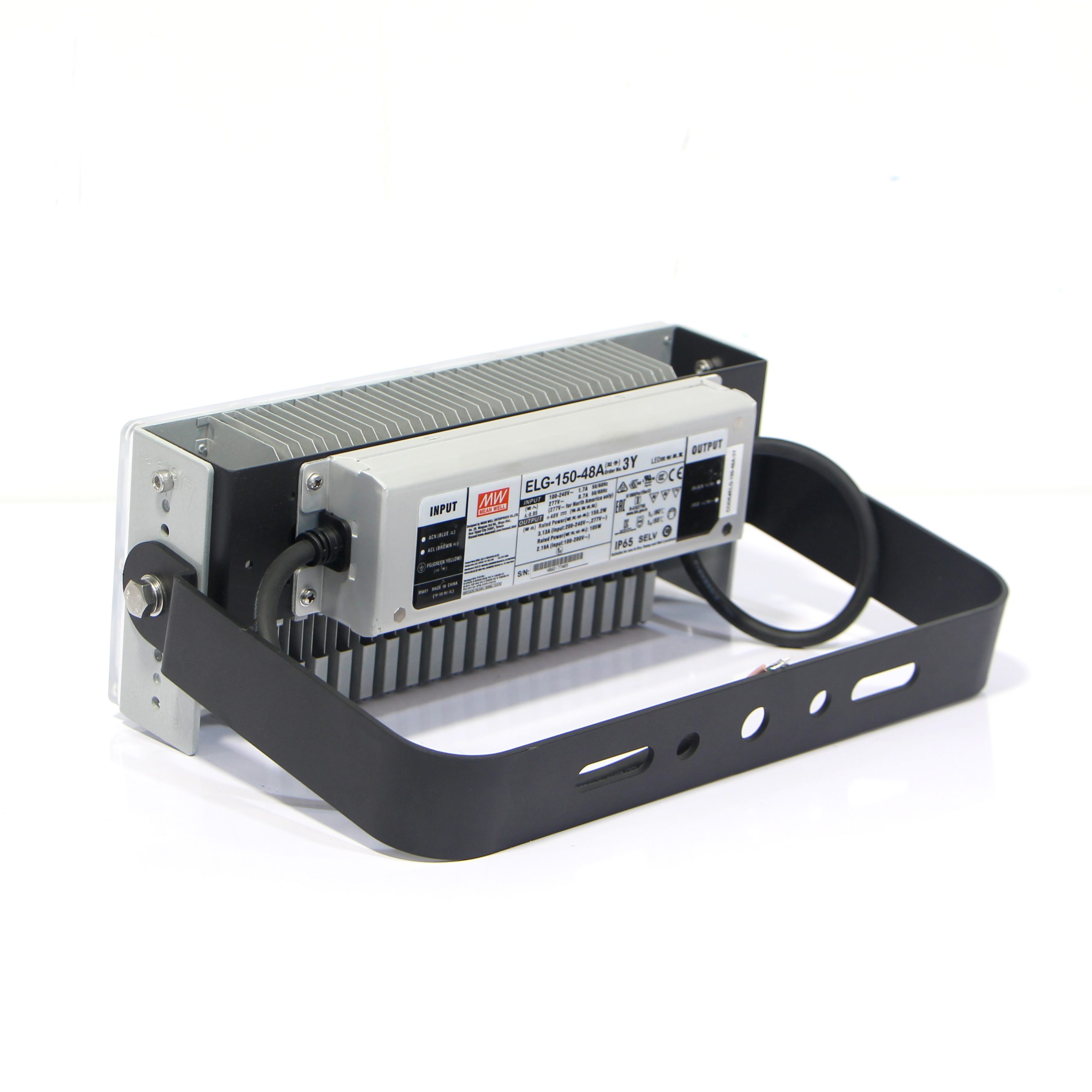

Use MeanWell brand power supplies. You can also choose other power supply brands such as sosen, moso, etc. And 10KV or 20KV SPD is optional.
High efficiency, 200lm/w available.
24-48 hour aging test.
If you don't know how to choose the lamps you need, you can contact us through email, message,whatsapp or other means. We will provide you with the most suitable solution and also offer professional Dailux reports.
