LED Module Light
Module light Introduction
Shenzhen MIC Optoelectronics Co., Ltd. was founded in 2005 and is located in Longgang District, Shenzhen, Guangdong. Since the LED company is among the leader in the industry, thus it specializes in high-power LED indoor and outdoor lighting including LED Module Light. It is a leading integrated operation service company in the field of LED optoelectronics, focusing on the research and development of LED lighting products, Production, and sales. The company also has standard product production lines, self-support import and export rights, and professional management.
Also, they have research and development, manufacturing, and marketing teams, with more than hundreds of employees. They manufacturer different Products such as high-power LED street lights, LED solar street lights, LED high bay lights, LED tunnel lights, LED tubes, LED bulbs, LED spotlights, LED track lights, LED engineering lights LED ceiling lights and other high-power LED indoor and outdoor lighting fixtures and LED solar products, which have the advantages of energy-saving, environmental protection, and long service life, are widely used in lighting, traffic indication and urban lighting and other fields.
The company has also passed ISO9001 international quality system certification and ISO14001 international environmental management system certification. It has UL, TUV, CE, ROHS, FCC, and other international testing and certification reports for various products.
Survive by quality, and develop by innovation. Shenzhen Chuangqi Optoelectronics insists on technological innovation for development, adhering to the tenet of "Serving customers wholeheartedly", providing customers with high-quality products and perfect after-sales service. Therefore, the company is willing to cooperate with new and old customers and develop together sincerely.

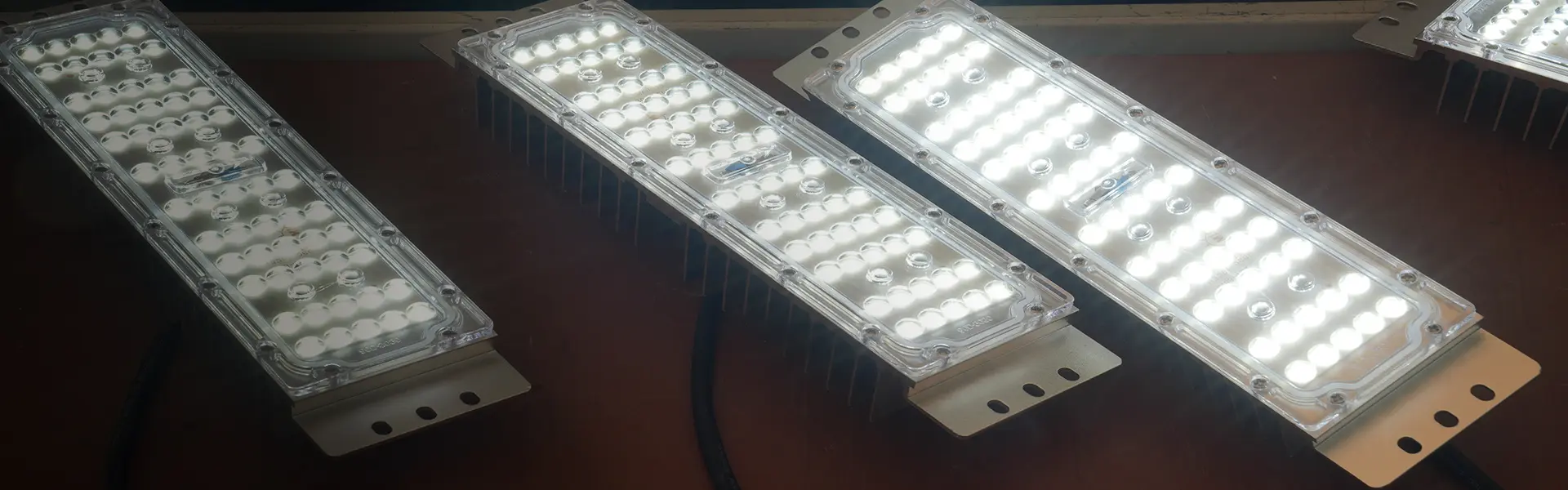

Module light is mainly used for replacement in new LED lamps with modular design.
|Carton size(20pcs/ctn)||530*325*185MM||530 * 325*185MM||530*325*185MM|
|Input Voltage||85-305V AC||IP Grade||IP66|
|Beam Angle||20°,60°, 90°,120° & 150°*80°||CCT||2700k-6500k|
|Life span||50000h||Guarantee||3 years|
1: Module series floodlight housing adopts one-piece die-cast aluminum heat dissipation, the main body is square, the power supply is inside the lamp body, the lamp beads and the main body bracket are composed, the whole is very light and thin.
2: Shell structure: Due to the use of die-casting process, the entire lamp does not have too many joints, plus a waterproof sealing ring, the waterproof level of the lamp is IP65.
3: Functional characteristics: Our module series flood light is a lamp dedicated to the replacement of modular design lamps.
Comparison of LED module lights and traditional street lights (high pressure sodium lights)
*The energy consumption of LED module lights and the energy consumption of LED street lights are the same at the same power. The following quotes the energy consumption comparison data of LED street lights.
With the widespread use of high-power LEDs in lighting decoration and lighting, power-type LED drivers are becoming more and more important. It will be possible to use high-power LED lighting for road lighting. Road lighting is the lamp with the longest use time and the most power consumption. The use of LED lamps in street lamps will greatly reduce the shortage of electricity in cities and save national energy. There are many domestic manufacturers of LED street lights, and the performance of their products varies greatly. Here only take the LED street lamp produced by our company as an example. Compare with the traditional street lamp (high pressure sodium lamp).
Below we will comment on the performance and economy of LED street lamps and traditional street lamps.
Comparison of performance comparison
Comparison of service life The traditional high-pressure sodium lamps with flood light sources currently circulating in the market have a shorter lifespan due to quality and technical problems, generally less than 6000 hours. The LED street lamp of Hangzhou Zhonggang Digital Technology Co., Ltd. The service life is more than 50,000 hours, which is equivalent to more than 8 times the life of the best high-pressure sodium lamps in circulation today.
That is to say, the high-pressure sodium lamp is replaced more than 8 times. On the contrary, you will have to replace the LED flood light only once. Thus, the cost of replacing the light source will not survive. The maintenance cost and the many inconveniences caused by it are the most obvious contrast. (Because of the special purpose of the street lamp, it is difficult to replace, it takes a certain amount of manpower and machine resources to complete the operation). LED flood light has no effect on the number of switches, no However, the high-pressure sodium lamp has a certain limit on the number of switching times.
Generally, it can only be switched on and off for 4000 to 5000 times, and the service life is over. The LED street lamp can be switched on and off for any number of times and at the end of its service life. There is no blackening phenomenon. The high-pressure sodium lamp is switched on and off for 1000 times or after 1000 hours of use, the lamp tube is obviously black, and the light efficiency is reduced by 16%. Our company adopts imported luminous body packaged by Nichia chip in Japan, and the quality is undoubtedly the top product on the market.
Comparison of start-up performance.
The LED flood light starts instantly, while it takes more than 10 minutes for the high-pressure sodium lamp to start to reach normal brightness. During this time, the high-pressure sodium lamp consumes a lot of power, while the LED flood light consumes normal power. Through the control circuit (such as Hangzhou Zhonggang Digital), the input voltage of the LED flood light can be between 90 volts and 265 volts without affecting the LED lights. The high-pressure sodium lamp cannot start when the input voltage is less than 185V, and the power increases by 12% when the input voltage exceeds 245V.
In this way, high-pressure sodium lamps have higher requirements for power supply lines. The LED has no effect.
Comparison of color rendering
The color rendering of high-pressure sodium lamps can only reach 20-30, while LED floodlights can reach more than 85. Compared with traditional lighting fixtures, the driver can better identify obstacles in the road and the surrounding environment of the road, and reduce the occurrence of traffic accidents. Also, the level of color rendering directly reflects the scotopic difference (S/P) of human eyes to light.
Therefore, the luminous flux emitted by the high pressure sodium lamp must be multiplied by a correction value (0.64) to be the light perceived by the human eye strength. The luminous flux emitted by the LED lamp must be multiplied by a correction value (1.60) to be the intensity perceived by the human eye.
Color temperature range
The color temperature range of high-pressure sodium lamps is 2000 to 2500, while the color temperature range of LED street lamps is 2700k to 9000k. If the color temperature is low, it gives people a warm feeling in winter, but it gives people a hot feeling in summer.
If the color temperature is high, it will feel cold in winter and cool in summer. Generally, people spend more time in the evening in summer, but less time in the evening in winter, and there are more hot weather than cold weather in the year. Therefore, it is better to use white light with a high color temperature for road lighting.
The luminous decay of LED floodlights has a lot to do with the radiators of LED lamps. Some manufacturers do better. For example, our company adopts the technology of "Multilayer Compound Heat Dissipation System" independently developed and obtained the national invention patent. The radiator is independently developed and molded, and the developed radiator makes it fit well with the lamp piece to achieve the best heat dissipation effect.
According to the current data, its light decay is less than 3% in 10,000 hours! In general, the light decay of the high-pressure sodium lamp is more than 25% in 2000 hours.
Comparison of lamp efficiency
The power efficiency of our company's LED floodlights can reach 88%, while the efficiency of high-pressure sodium lamps can only reach 70%. For example, the entire lamp power consumption of a 120 watt LED flood light is 138 watts, while the entire lamp power consumption of a 120 watt high pressure sodium lamp is 156 watts.
Comparison of environmental protection
LED flood light does not contain mercury, no ultraviolet radiation, and its low working temperature effectively reduces heat emission. Because it saves electricity, it saves coal for power generation and uses less coal for power generation, thereby saving carbon dioxide emissions! The high-pressure sodium lamp contains mercury and ultraviolet radiation, so it emits a lot of heat, consumes electricity, wastes coal, and emits a lot of carbon dioxide!
The LED power factor is greater than 0.99, and the power factor of the high-pressure sodium lamp is about 0.44. So, in this way, the LED pollutes the power grid very little, while the high-pressure sodium lamp pollutes the power grid very much! LED lamps have no stroboscopic and light pollution, while high-pressure sodium lamps have obvious stroboscopic and light pollution.
Effective light utilization rate
Due to the characteristics of LED light source similar to point light source, it emits directional light to the illuminated object. There is basically no waste of light, so it has a very high light utilization rate, which can reach more than 92%. However, because the high-pressure sodium lamp emits on all sides, part of the light is blocked by the light source itself and has a large luminous point.
It is difficult to make optical design, and the efficiency of the lamp is not high, and the output The light spot will not reconcile with the required effective irradiation surface and waste part of the light source. Therefore, it is projected to the surface of the illuminated object through the reflector of the lamp, and part of the light will be lost in the middle. Therefore, the effective light utilization rate of traditional lamps is 55~60%
MIC LED Flood light VS HPS Lamp ROI Analysis （Direct Replacement）
|Light Source Item||HPS Lamp||MIC S series LED Flood Light|
|Initial Investment||Power of Light Source||500W||150W|
|Electric power consumption||Power of Light Source||500W||150W|
|Reactive Compensation||PF 0.80||PF 0.95|
|Power of Each Lamp||863W||188W|
|Total Power of Lamps||207 kwh||3.8kw|
|Daily Power Consumption||75,555 kwh||45.14 kwh|
|Yearly Power Consumption||755,550 kwh||16475kwh|
|10 years’ Power Consumption||500W||164749 kwh|
- Its own characteristics-one-way light, no light diffusion, ensuring light efficiency.
- The LED street lamp has a unique secondary optical design, which irradiates the light of the LED street lamp to the area that needs to be illuminated, and further improves the light efficiency to achieve the purpose of energy saving.
- The LED has reached 130-170lm/W, and there is still a lot of room for development, with a theoretical value of 360lm/W. The luminous efficiency of high-pressure sodium lamps increases with the increase of power. Therefore, the overall luminous efficiency of LED street lamps is stronger than that of high-pressure sodium lamps;
- The light color rendering of LED street lamps is much higher than that of high pressure sodium lamps. The color rendering index of high pressure sodium lamps is only about 23, while the color rendering index of LED street lamps is above 75. From the perspective of visual psychology, the same brightness can be achieved. It is more than 20% lower than high pressure sodium lamp.
- The light decay is small, the light decay in a year is less than 3%, and it still meets the road requirements after 10 years of use, while the high-pressure sodium lamp has a large decay, which has dropped by more than 30% in about a year. Therefore, the design of the power of the LED street lamp Can be lower than high-pressure sodium lamps.
- The LED street lamp has an automatic control energy-saving device, which can achieve the greatest possible reduction in power and energy saving under the condition of meeting the lighting requirements at different times. It can realize computer dimming, time period control, light control, temperature control, automatic inspection and other humanized functions.
- Long life: It can be used for more than 50,000 hours and provides three-year quality assurance. The disadvantage is that the life of the power supply cannot be guaranteed.
- High luminous efficiency: Using chips ≥100LM, it can save more than 75% energy compared with traditional high pressure sodium lamps.
- Easy installation: no need to add buried cables, no rectifiers, etc., directly connect to the lamp pole or nest the light source into the original lamp housing.
- Excellent heat dissipation control: the temperature in summer is controlled below 45 degrees, and passive heat dissipation is adopted, and the heat dissipation in summer is insufficient.
- Reliable quality: All circuit power supplies use high-quality components, and each LED has individual overcurrent protection, so there is no need to worry about damage.
- Uniform light color: No lens is added, and uniform light color is not sacrificed to improve brightness, so as to ensure uniform light color without aperture.
- The LED does not contain harmful metal mercury and will not cause harm to the environment when it is scrapped.
Combining the above principles, the energy saving effect is remarkable, and it can save more than 60% of electricity instead of high pressure sodium lamps.
Low maintenance cost: Compared with traditional street lamps, the maintenance cost of LED street lamps is extremely low. After comparison, all input costs can be recovered in less than 6 years.
- A single LED has low power. In order to obtain high power, multiple parallel connections are required.
- Low color rendering. The color displayed under LED illumination is not as true as that of an incandescent lamp. This must be analyzed from the spectral distribution, which is a technical problem.
- Light spot. Due to the defects in the manufacturing process of the white LED itself and the matching error with the reflecting cup or lens, it is easy to cause the "yellow circle" problem.
- LED illumination uniformity problem. If the secondary optical design is not carried out, the illumination of the LED is relatively concentrated, so the secondary optical design must be carried out to make the light intensity distribution map look like a bat.
- The light decay of LED. Compared with low-power LEDs, high-power LED street lights have much better light decay. However, low-power LEDs emit very little heat. The high-power LED has a problem that cannot be solved by heat dissipation, and the brightness will be significantly reduced after heating, so the power cannot be increased.
The technology is becoming more and more mature, and the efficiency of the light source has reached more than 100lm/W, which makes the energy-saving transformation of urban street lighting possible. LED street lamps, especially high-power LED street lamps, are impacting the traditional street lamp market at a rapid pace.
As the name implies, high-power LED street lights are street lights with a power greater than 30 watts and using a new type of LED semiconductor light source. The standard is generally the uniformity of road illuminance, in line with road illuminance. (The actual 1/2 center spot reaches 25LUX, the 1/4 center light intensity reaches 15LUX, the lowest light intensity at 16 meters is 4LUX, and the overlap light intensity is about 6LUX. It refers to the LED street light that uses solar silicon panels as the power supply.
- The conversion rate of light is 17%, (the solar energy per square meter is 1000W, and the actual utilization efficiency is 170W)
- The street lamp lens material in the market is an improved optical material, with a transmittance of ≥93%, a temperature resistance of -38 to +90 degrees, and an anti-UV and yellowing rate of 30,000 hours without change.
- LED street lamp, mainly used for the lens of LED street lamp, the spot is rectangular, the material is PMMA optical material, the transmittance is ≥93%, the temperature resistance is -38-+90 degrees, and the anti-UV yellowing rate is unchanged for 30,000 hours. Wait,
- The average illuminance of uniformity of road surface illuminance is 0.48, and the spot ratio is 1:2.
- Meet the road illuminance. (The actual 1/2 center spot reaches 25LUX, the 1/4 center light intensity reaches 15LUX, the lowest light intensity at 16 meters away is 4LUX, and the overlapping light intensity is about 6LUX.
- It has very good application prospects in new urban lighting. Dimming depth, and color and other characteristics will not change due to dimming.
- Adapt to humidity: ≤95.
Despite the rapid development of LED street lights, the standard of LED street lights is relatively lagging behind. Globally, there are not all LED street lamp standards, such as European standards for LED street lamps. In fact, the standards for LED street lamps in various regions are not the same in terms of indicators. LED street lamps must meet the requirements of the sales area in terms of standards. Therefore, bidding for LED street lamp projects requires in-depth study of local LED street lamp standards. Only in this way will it be fierce. Occupy a place in the market competition.
