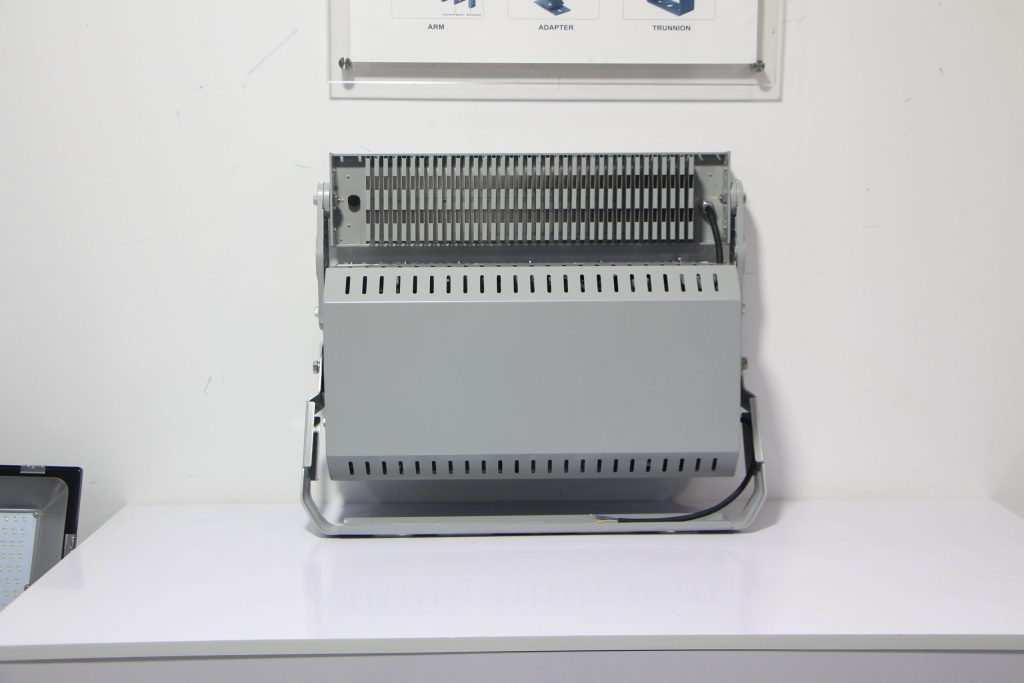

200w LED Flood Light 240wats MFL-G240-A
200W or 240W Optional
Quick info
200w LED Flood Light 240wats MFL-G240-A Series. 92pcs leds, 1 module,250x332x180mm size,
- Description
- Specification
200w LED Flood Light 240Wats Waterproof Light MFL-G240-A Series
200w LED Flood Light with photocell sensor
- Patent private mould, integrated die-casting AL.
- High efficiency, 180lm/w available.
- Professional anti-glare lens：PC full cutoff lens 8°/20°/40°/60°/90°/100°x140°.
- 0/1-10V dimming, time control, light sensing, iot control and other functions are optional.
- The horizontal locator is easy to install.
- The protection level is IP66/IK10.
- Variety of angles, can be customized bracket mounted on the street light pole.
- Each module can be customized with a light shield to improve light spillage.
- Meanwell/Moso/Sosen/Inventronics driver.
MFL-G480-A Led Flood Light 480W adverting billboard project in Jeddah King Abdul Aziz International Airport Saudi Arabia
Click to download the flood light certificate
Certificate
LM-79,LM-80,LM-82,UL 1598,IEC 60598,IESNA,CIE,ANSI,NEMA,ANSLG C78.377-2008,JEDEC,ASTM,ISO 9227,IEEE Std 519 1992,EMC,IK08,IK10,IP66,IEC 62471,RoHS,CB,ENEC,SASO,SABER,IECEE,Energy Label,ISO45001,ISO9001,ISO14001,TM21,IP66
Enforce standards
IEC 60598,IEC 60068,IEC 62471,IEC 60529,EN 55015,EN 60529,EN 50102,EN 61347,EN61384,EN 61547,EN 62493,IEC 62262,EN61000,EN 61547,IEC 62262,IEC 60068,ISO2039,ISO6508,IEC 62031,IEC 62778,TR 62778,IEC 62493,IEC 60384,IEC 60065,IEC 61032,IEC 60570,IEC 60664,IEC 61347,IEC 60227,IEC 60245,IEC 60603,IEC 62680,IEC 60320,IEC 61535,IEC 61984,IEC 60083,IEC 62209,IEC 62232,IEC 62493,EN 50525,IEC 62321,IEC 61643,IEC 60112,EN 60598-2-3:2003,EN IEC 60598-1,IEC 60598-2-3,IEC 60598-1,IEC 55015,IEC 61000,IEC61547
200w LED Flood Light IP66/IK10 20KV spd LoRaWan, 0/1-10V dimming, time control, light sensing, iot control smart intelligent automation system
MIC G series LED streetlight/floodlight
Super bright 160lm/w LED floodlight 240w-1440w, add adjustable arm and transform to LED street light, which ranges from 240w-720w.
Excellent heat dissipation performance
Adopt a top-quality aluminum fin design, greatly increase the area to take the heat out.
Multiple beam angle lens optional
Symmetrical beam angle 8 degrees to 90 degrees optional and asymmetrical beam angle 140*100 is available, to meet different lighting requirements
- Module direction adjustable
Each module is 35 degrees adjustable and the U bracket is 180 degrees adjustable
- Module group adjustable
Every 2 modules for one group, which can be 35 degrees adjustable.
Floodlight installation
U bracket installation.
200w LED Flood Light or 240w led lanps price is US121 dollars,2 modula, white and black color available,use meanwell driver,made in CHINA.
