New LED Street Lights Key Features:
The luminaire design is based on a three-compartment concept, consisting of an LED engine, power supply and spigot compartment. This allows for easy installation without the risk of jeopardizing the IP integrity of the luminaire. Furthermore, the hinging concept allows the easy replacement of the LED engine in case of future upgrades or maintenance.
1, Surge protection: 10kV/10kA, Optional: 20kV/20kA
2, The LED fixture, consisting of the LED light source and the power supply, can be easily replaced or upgraded.
3, The electronic power supply is suitable for operation with a 85-305V 50Hz single phase system. (DC versions are available). The power factor is rated at ≥0,95. The efficiency is rated 89%.
4, The luminaire housing is manufactured of marine-grade aluminum;
5, Secured by stainless steel latches and access screw
6, Each LED is equipped with a lens to provide the desired light distribution. Type II（70*155˚）、Type III（80*155˚）、Type 4（85*155˚） beam angle available
7, To maximize the reliability of the LEDs, the photometrical engine is completely sealed to IP 66. This ensures that the photometric performance is maintained over time.
8, The power supply is automatically disengaged when opening the luminaire.
9, Special use of stainless steel inserts to prevent galvanic corrosion between stainless steel and aluminum, allowing future removal of the luminaire from the spigot
10, Side entry adaptor for arms: ø42mm, ø50mm ø60mm ø64mm available.
11, NEMA 3-Pins & NEMA 5-Pins & NEMA 7-Pins base for photocell sensor, if added with 0-10v dimme driver which can use for smart control like Lora Wan/5G Cat/PLC/Zigbee etc, at the same time complete with plug-in surge protection for easy replacement.
12,with Level meter (Gradienter),which make the installation very accurate.
13, the most important, we want to introduce the last advantage design, which is the same design philosophy of Philips and Osram’s Led street light:
Driver plate can remove without tools, and all connecter is toolless for fast connection. That means when the worker need to do the maintenance in the future, they can just remove the plate and take down the driver with plate for testing. If it is driver defective, they can just change the driver and install it back with the plate, That kind of design is very convenient and save your labor work.
|

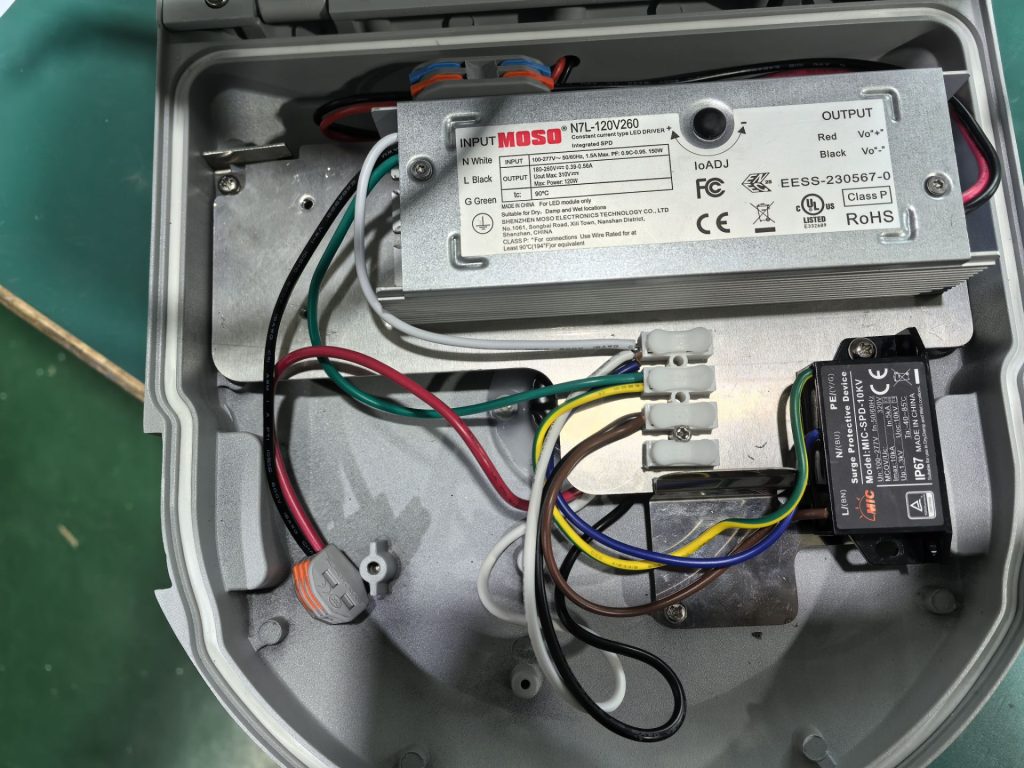

Solution A type fast connecter:
|
|

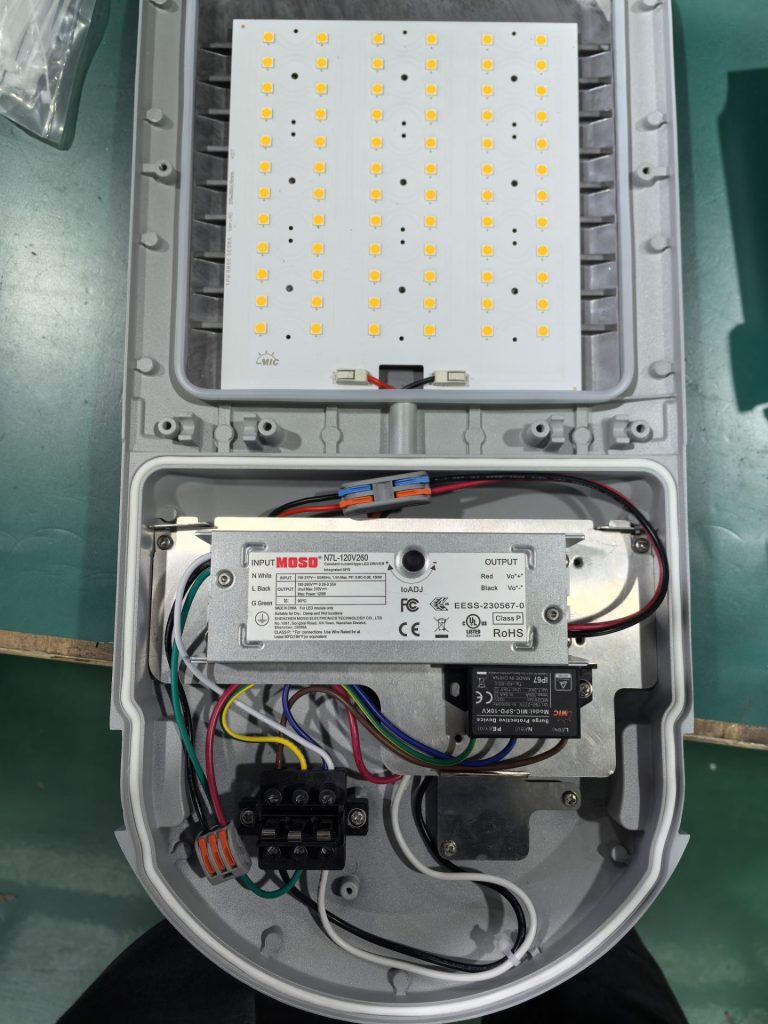

Solution B type fast connecter:
|
Video effect to let you better understanding it:
Certificates that MIC had it for this street lighting fixture: ENEC certficate, ETL certficate,TUV certficate,CB certficate,IECEE certficate,SABER certficate,SASO certficate,CE certficate,ROHS certficate,IK08 testing report,IP66 testing report,LM79 testing report, LM80 report, EMC certficate, LVD certficate,
