10W LED Flood Light MFL-S10 Aluminum used Anti-corrosion.
Min. Order Quantity: 12pcs
Schnelle Information
Lighting solutions service:Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Project Installation
- CRI (Ra>):80
- Beam Angle(°):8/15/35/60/90/120°
- IP Rating:IP66
- Lamp Luminous Flux(lm):1300~31000
- Warranty(Year):5 Jahre
- Color Temperature(CCT):2700K-6500K
- Luminous Efficacy(lm/w):130
- Input Voltage(V):AC 85-300V
- Beschreibung
- Spezifikation
MIC led flood light
Optimieren Sie das Erscheinungsbild des Designs, sorgen Sie für eine dünne / einfache Installation, weniger Gewicht, um Versandkosten zu sparen, extrem hohe Helligkeit. Die Leuchtkraft des Endprodukts kann 130-140 lm / w erreichen.
|
Modell Nr.
|
MFL-S10
|
MFL-S20
|
MFL-S30
|
|
NW / Größe
|
0,46 kg / 166 * 116 * 32 mm
|
0,7 kg / 167 * 226,5 * 40 mm
|
1,3 kg / 167 * 226,5 * 40 mm
|
|
Lichtstrom
|
> 1300LM
|
> 1300LM
|
> 1300LM
|
|
Verpackung
|
42 * 43 * 26CM, 36 Stück / CTN
|
52 * 38 * 26CM, 20 Stück / CTN
|
54 * 51 * 26CM, 20 Stück / CTN
|
|
|
|
|
|
|
Modell Nr.
|
MFL-S50
|
MFL-S80
|
MSL-S100
|
|
NW / Größe
|
2,56 kg / 220 * 311 * 47,5 mm
|
4,77 kg / 245 * 355 * 50 mm
|
6,07 kg / 295 * 403 * 53,5 mm
|
|
Lichtstrom
|
> 6500LM
|
> 10400LM
|
> 13000LM
|
|
Verpackung
|
54 * 38 * 26CM, 8 Stück / CTN
|
36 * 47,1 * 53,5 cm
|
48 * 39 * 14CM, 1 Stück / CTN
|
|
|
|
|
|
|
Modell Nr.
|
MSL-S150
|
MFL-S200
|
MFL-S240
|
|
NW / Größe
|
7,8 kg / 330 * 431 * 53,5 mm
|
8 kg / 360 * 471 * 53,5 mm
|
8 kg / 360 * 471 * 53,5 mm
|
|
Lichtstrom
|
> 19500LM
|
> 26000LM
|
> 31200LM
|
|
Verpackung
|
51 * 43 * 14CM, 1 Stück / CTN
|
56 * 46 * 14CM, 1 Stück / CTN
|
56 * 46 * 14CM, 1 Stück / CTN
|
|
|
|
|
|
|
Modell Nr.
|
MSL-S300
|
MSL-S400
|
MSL-S500
|
|
NW / Größe
|
9 kg / 457 * 565 * 65 mm
|
10 kg / 559 * 585 * 70 mm
|
10 kg / 559 * 585 * 70 mm
|
|
Lichtstrom
|
> 39000LM
|
> 52000LM
|
> 65000LM
|
|
Verpackung
|
620 * 515 * 135 mm
|
640 * 615 * 140 mm
|
640 * 615 * 140 mm
|
|
Abstrahlwinkel
|
30°, 60°,90°,120°, 140°x70°; 70°x150°; 150°x80°, 50°x140°; 140°x140° degree optional
|
||
|
Abstrahlwinkel
|
8/15/35/60/90/120°
|
IP-Grad
|
IP66
|
|
CCT
|
2700-6500K
|
PF-Rate
|
> 0,95
|
|
Lichteffizienz
|
>130lm/W
|
SCHREIEN
|
> 80
|
|
Lebensspanne
|
50000h
|
Eingangsspannung
|
AC85-300V
|
LEDs
Led lamp: SMD 3030, Light Efficient: >130lm/W.
Reflector
Pure Aluminum reflector, reflective rate reach to 99.8%
Innovative G-buckle technology
Innovative G-buckle technology , prevent glass off, free of screw fixing, elegant appearance, easy for assembling

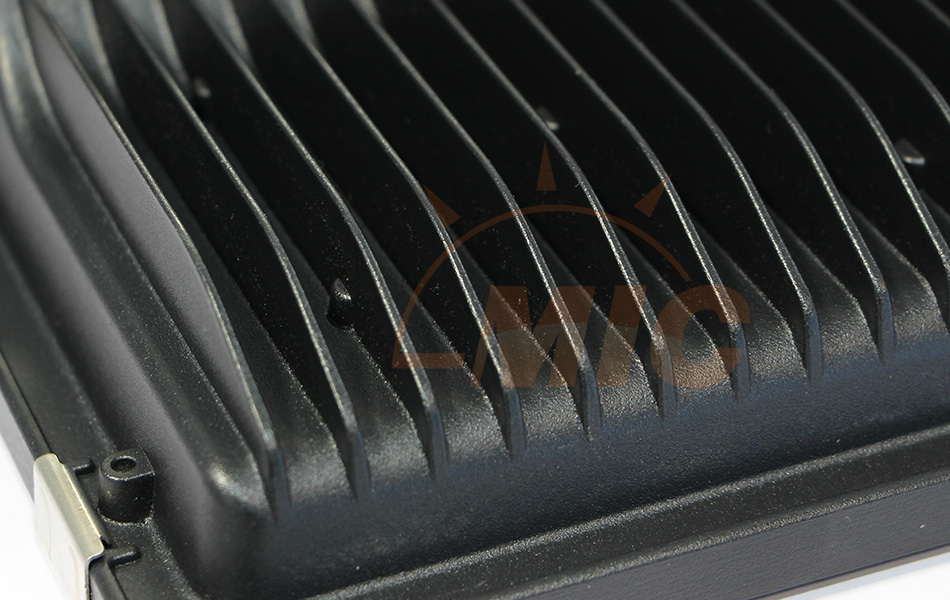

Heat sink
Die-casting aluminum used, anti-corrosion. Ultra thin, streamline structure.

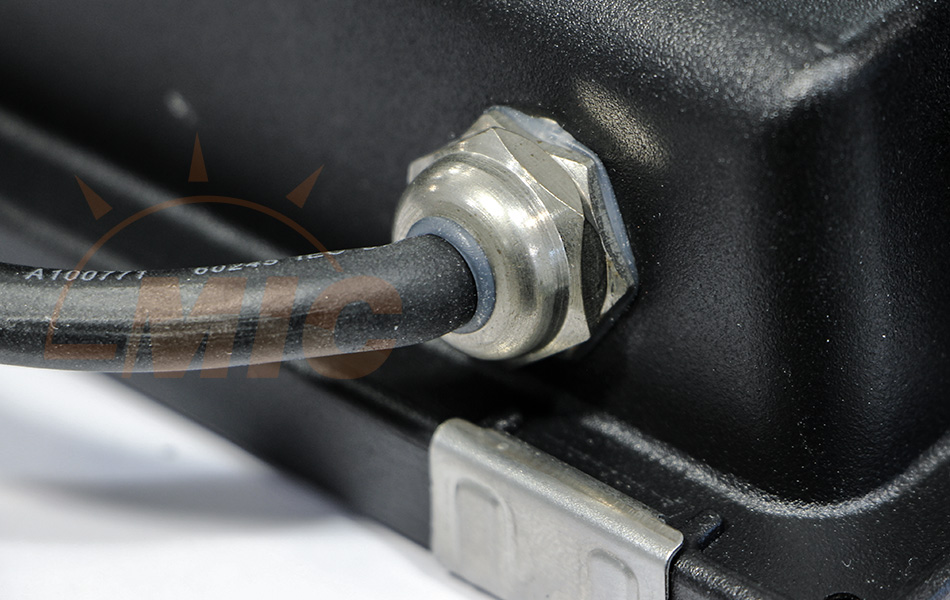

Waterproof Plug
10W LED Flood Light is Waterproof grade reach to IP66. Don't worry about heavy rain

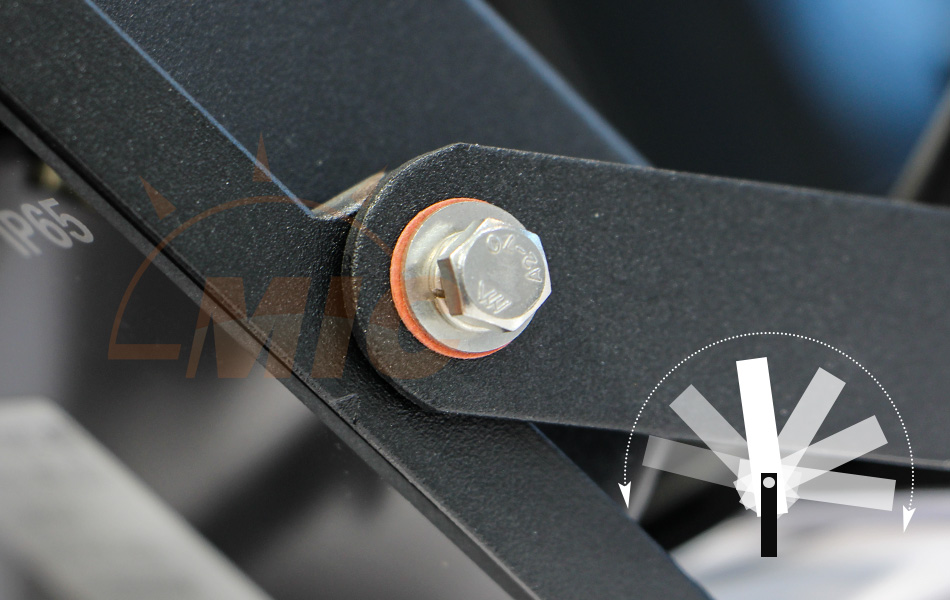

Adjustable angle
10W LED Flood Light has Adjustable angle of lamp body >180 degrees
Tool less
It can be adjusted manually without tools, which is convenient for maintenance at any time
CCT
left:3000k, right:6500k
Test
Passed multiple standard certifications, such as CE, ROHS, TUV, SAA, ETL, etc.
