25w mic led street light1
25w mic led street light2
25w mic led street light

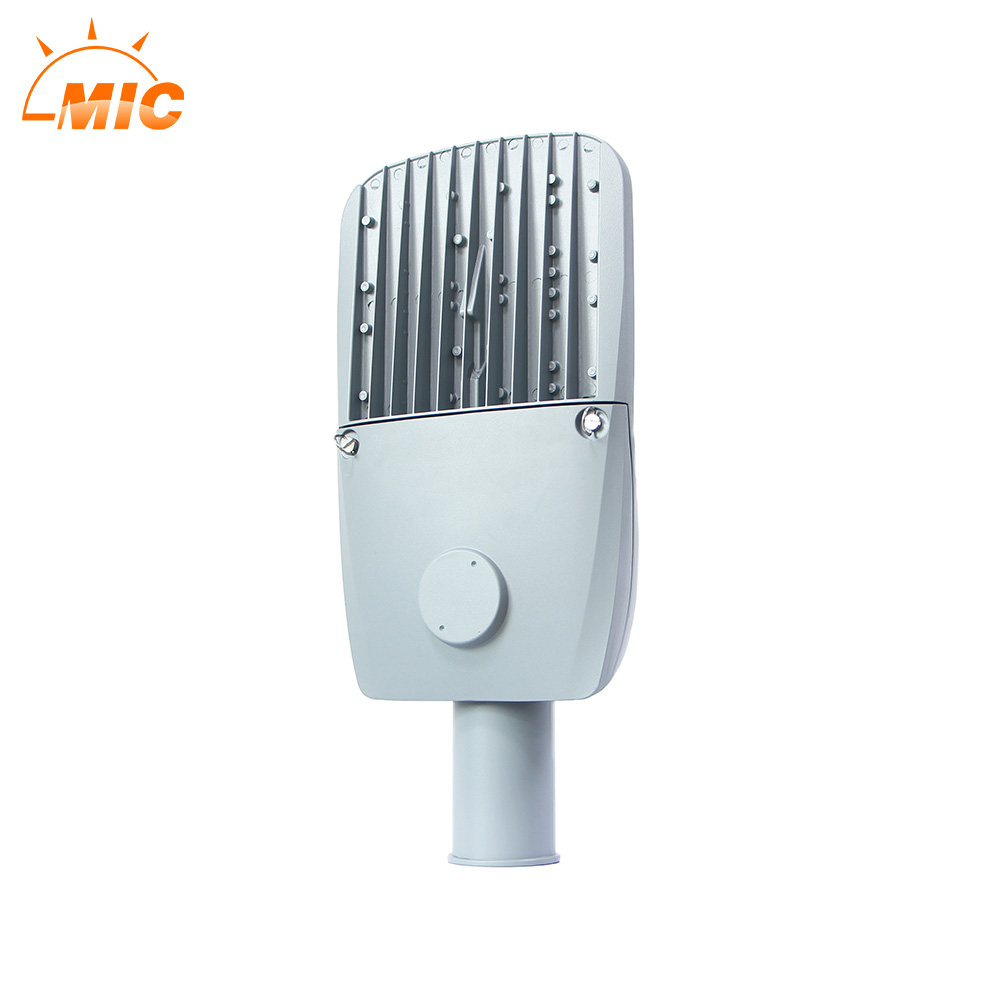

50W LED street light A-1 series high efficient

Min. Order Quantity: 20pcs

Quick info

This is a new design led street light A-1 series, lighter weight, no glass, the lamp arm is fixed.

Specification Download:MSL-A50-1

Prev Quote Now Next
  • Description
  • Specification

[prisna-wp-translate-show-hide behavior="hide" except=""][/prisna-wp-translate-show-hide]

50w led street light    50w led street light

______________________________________________________________________

ITEM No.
MSL-A25-1
MSL-A50-1
MSL-A80-1
Power
25w
50W
80W
Lumionous Flux
3250lm
6500lm
10400lm
NW/Size(kg,mm)
408*230*106/1.7
408*230*106/1.7
509*230*105/2.3
ITEM No.
MSL-A100-1
MSL-A120-1
MSL-A150-1
Power
100w
120w
150w
Lumionous Flux
13000lm
15600lm
19500lm
NW/Size(kg,mm)
509*230*105/2.3 600*257*109/3

600*257*109/3

Beam Angle
75*140
IP Grade
IP66
CCT
2700-6500k
PF Rate
>0.96
Material
Die-casting Aluminum+Optical Lens
CRI
>80
Life span
50000h
LED lamp
SMD 3030 or 5050
Luminous flux
160lm/w
Guarantee
3 years
50w-led-street-light-a-1-series-2

---Sensor

The standard type is without sensor.Photocell & Microwave sensor is available if needed.

50w-led-street-light-a-1-series-2
50w-led-street-light-a-1-series-2
---Product Features
1. Using high bright SMD 3030 or SMD 5050.
2. Adopts integrated design of heat sink and lamp housing. The LED is directly connected to the outer casing, and the heat dissipation fins transfer the light source heat out fast, which fully ensure the lifetime 50,000 hours of the LED street light.
3. The lamp housing is made of die-casting aluminum, and the reasonable structure design ensure the effective heat dissipation performance, waterproof and dustproof. The luminaire surface is with UV-resis tant and anti-corrosive treatment, and the overall luminaire meets the IP66 standard.
4. It adopts standard DC12 die-casting aluminum, which is environmentally friendly and pollution-free. It does not contain lead, mercury and other pollution elements, and has no pollution to the environment.

--------Click for more Information--------

Shipping

By sea
Delivery from Shenzhen seaport
By air
Departure from Shenzhen airport
By express
By TNT/DHL/UPS /FEDEX express

Payment

We welcome use Trade Assurance, you'll enjoy

100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

Contact Us
Facebook Skype Twitter
micledlighting
led-mic
Lighting_MIC
 Instagram  Web site
Address
 miclight2019  www.mic-led.com ShenZhen, China

MIC LED welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-755-89313334

contact us

Quick Details
Color Temperature(CCT):6000K (Daylight Alert)
Lamp Luminous Efficiency(lm/w):165
Color Rendering Index(Ra):80
Lighting solutions service:DIALux evo layout, LitePro DLX layout
Lifespan (hours):50000
Working Time (hours):50000
Light Source:LED
Input Voltage(V):AC 85-265V
CRI (Ra>):80
Working Temperature(℃):-40 ~ +50
IP Rating:IP67
Certification:ce, C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SASO, Saa
Warranty(Year):5-Year
Place of Origin:Guangdong, China
Brand Name:MIC
Beam Angle(°):type 3 and type 4
Application:ROAD
Power Supply:AC
Single package size:55X31X16 cm
Input Voltage:AC 85-308V & DC 12-24V
