210w c series led tunnel light-01
210w c series led tunnel light-02

210w C Series LED Tunnel Light

Min. Order Quantity: 100pcs

Quick info

Since the establishment of our own brand MIC LED, with strong R&D capacity, professional technical team and rich experience in the industry, we launch new products beyond the customers' expectation every year, which always lead the industry trend.

  • Lamp Materials: Die-casting Aluminum + Optical Lens
  • Lamp Lifetime: >50, 000Hours
  • Power Factor: >0.95
  • IP Rating: IP67
Prev Quote Now Next
  • Description
  • Specification

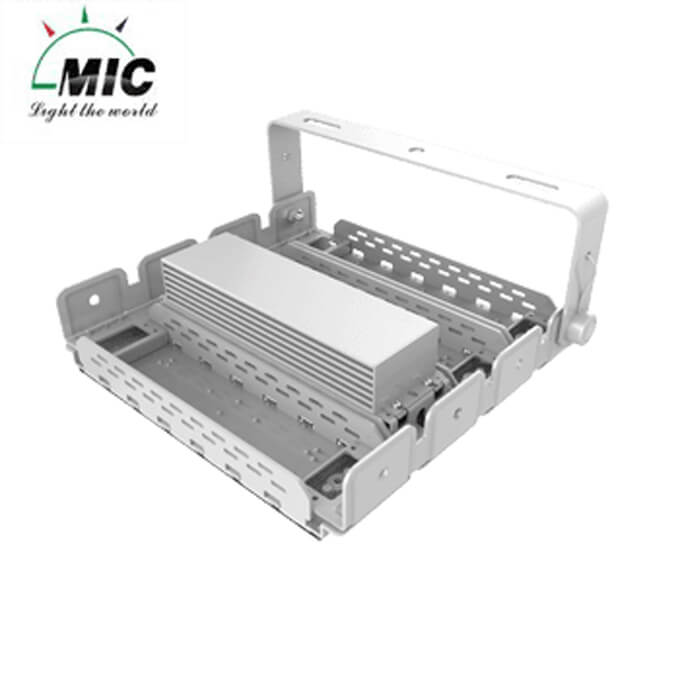

1. Modular style design, easy to assemble, replace and repair, with Aluminum fins heatsink, increasing heat sinking area.

2. The lamp body is made of high grade 1060 Aluminum with Integrated stamping. High corrosion resistance and high thermal conductivity. All screw, nut and other small components are made of SUS304 stainless steel, keep the lamp stable.

3. The bracket can be easily adjustable, and different holes for install the bracket, meet different lighting application.

4. Lens with beam angle 60°*60°, 90°*90° and 90°*100° are optional. The lens has high light transmittance, flame retardant, anti abrasion and UV-proof, provide excellent light distribution.

c series led tunnel light-detail-1

Product Name 210w LED tunnel light
Model No. MT-C210
LED consumptions 210w
LED Quantity 360pcs
LED luminous >130lm/w
Power Efficiency >90%
LED Chip Source Philips 3030
Power Factor >0.95
Input Voltage AC85-277V,  50-60Hz
Lamp Rated luminous Flux >27300lm
Color Rendering Index (CRI) >80
Color Temperature Warm white (2700-3500K); Pure white (4000-5000K); Cool white (6000-6500K)
Total Harmonic Distortion (THD) <15%
Light Beam Angle 60°*60°, 90°*90° and 90°*100° optional
Lamp Materials Die-casting Aluminum + Optical Lens
Lamp lifetime >50, 000Hours
IP Rating IP67
Net Weight 8.5KG
Gross Weight 10.5KG
Product Size (mm) 645*330*109mm
Packaging Size(mm) 780*400*150mm
