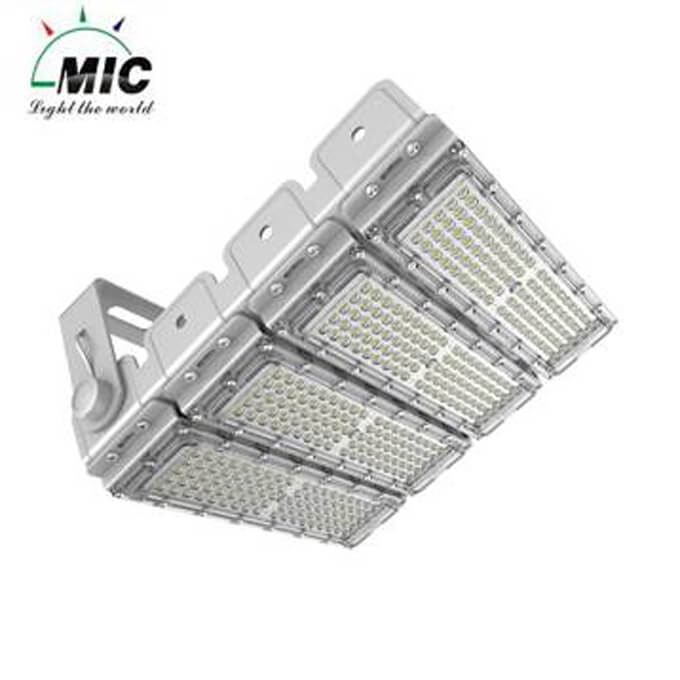

240w C series led tunnel light

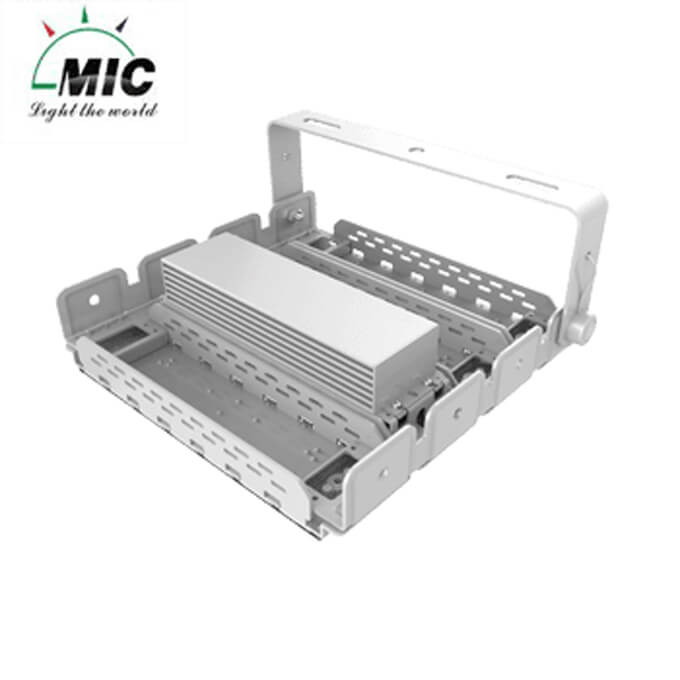

1. Modular style design, easy to assemble, replace and repair, with Aluminum fins heatsink, increasing heat sinking area.
2. The lamp body is made of high grade 1060 Aluminum with Integrated stamping. High corrosion resistance and high thermal conductivity. All screw, nut and other small components are made of SUS304 stainless steel, keep the lamp stable.
3. The bracket can be easily adjustable, and different holes for install the bracket, meet different lighting application.
4. Lens with beam angle 60°*60°,90°*90°and 90°*100°are optional. The lens has high light transmittance, flame retardant , anti abrasion and UV-proof, provide excellent light distribution.
|Product Name||240w LED tunnel light|
|LED Chip Source||Philips 3030|
|Input Voltage||AC85-277V, 50-60Hz|
|Lamp Rated luminous Flux||>31200lm|
|Color Rendering Index (CRI)||>80|
|Color Temperature||Warm white (2700-3500K)Pure white (4000-5000K)Cool white (6000-6500K)|
|Total Harmonic Distortion (THD)||<15%|
|Light Beam Angle||60°*60°,90°*90°and 90°*100°optional|
|Lamp Materials||Die-casting Aluminum+ Optical Lens|
|Product Size (mm)||645*330*109mm|
