t series 200w led flood light-01
t series 200w led flood light-02
t series 200w led flood light-03
t series 200w led flood light-04

T Series 200w LED Flood Light

Min. Order Quantity: 100pcs

Quick info

Since the establishment of our own brand MIC LED, with strong R&D capacity, professional technical team and rich experience in the industry, we launch new products beyond the customers' expectation every year, which always lead the industry trend.

  • Input Voltage: AC85-300V
  • LED Span: 50, 000h
  • IP Grade: IP66
  • PF Rate: >0.95
Prev Quote Now Next
  • Description
  • Specification

Quick Details

Light Source LED
Item Type Flood Lights
LED Light Source XHP50
Input Voltage(V) AC85-300V
Beam Angle(°) 5/10/20/30/60
Working Lifetime (Hour) 50000
Lamp Body Material Aluminum
IP Rating IP66
Certification CE, EMC, ETL, FCC, LVD, RoHS, SAA
Place of Origin Guangdong, China (Mainland)
Brand Name MIC
Application Sports Stadiums
Color Temperature (CCT) Warm white (2700-3500k); Pure white (4000-4500k); Cool white (6000-6500k)
Lamp Luminous Flux (lm) 15000~100000
Lamp Luminous Efficiency (lm/w) 100
Working Temperature (℃) -40 – 50
Product Name Outdoor Stadium Led Underwater Narrow Angle Fishing Light
Driver ETL CE TUV Driver
Power Factor >0.9
Warranty 5 years



Packaging & Delivery

Selling Units Single item
Single package size 63X55X45 cm
Single gross weight 27.0 kg
Package Type 1pcs/CTN
Lead Time Quantity (Piece) 1 – 50 51 – 300 >300
Est. Time (day) 7 12 To be negotiated

t series flood light-detail-1

Small Angle 5˚, 10˚, 20˚, 30˚, 60˚ Reflective Angle floodlight, Light up a distance with 500m. Good to use Tall building lighting and stadium, Airport, logistics' light.

t series flood light-detail-2

t series flood light-detail-3

t series flood light-detail-4

thermal tset report
Thermal test report
Lamp bead temperature: 63˚C
Professional light distribution
Have 5/10/20/30/60˚angles such as reflective cup selection, satisfy the professional light distribution, widely applicable scope. With 5˚ beam Angle projection distance of up 500m, is a real sense of tall building lighting products.
professional light distribution
ul driver
UL Driver
Adopts world TOP brand driver, CE ROHS UL approved, with high power factor 0.95 and waterproof IP67.
Bracket 180˚ adjustable
Mounting Bracket is 180˚adjustable, easy for installation.
bracket 180˚ adjustable

Certifications

MIC led corn light certificated with ETL, FCC, CE, ROHS, TUV, Popular used for replacing warehouse high bay and street bulb, using in a petrol station, garden, supermarket, shop, etc.

certifications

About Us

Shenzhen Top-branded Enterprise and China Advanced Enterprise in Harmonious Labor Relations. We independently design and manufacture LED products ranging from High Power LED Street Light to the other LED lights, which qualify us to be one of the largest manufacturers, suppliers, and exporters of LED lighting and solar lights in China, as well as the leading provider in energy-saving solutions.

mic


mic-led-about

Why Choose Us

why choose us-1

1. We use Dialux software to simulate the luminous effect, so as to make sure our proposals meet clients' requirements.

2. Our PMC department follows the production and we can report to you at any time about the production by photos and videos.

why choose us-2

3. We have IQC, IPQC, and OQC during the production, guarantee the products.

4. We have a large capacity and quickly finish the cargos in a short time with our experienced production team.


E40 E39 E27 25w-120w-detail-19

MIC LED welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. Hotline: 0086-755-89313334.

Model NO. MFL-T150 MFL-T200
Product name 150W Flood light 200W Flood light
NW/Size 7.5kg/Dia370*347mm 7.5kg/Dia370*347mm
Luminous Flux XTE /  >15000LM XTE /  >20000LM
Packing 440*440*330mm 440*440*330mm

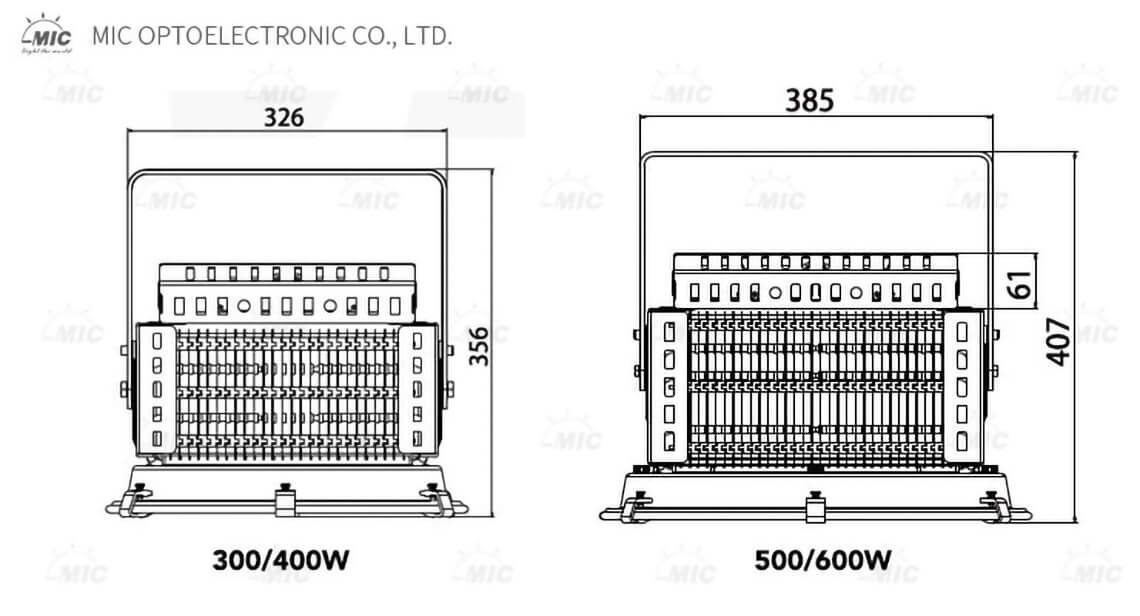

Model NO. MFL-T300 MFL-T400 MFL-T500
Product name 300W Flood light 400W Flood light 500W Flood light
NW/Size 10kg/Dia369*356mm 10kg/Dia369*356mm 16.5kg/Dia471*407mm
Luminous Flux XML2 / >30000LM XML2 / >40000LM XML2 / >50000LM
Packing 440*440*330mm 440*440*330mm 550*550*360mm
Model NO. MFL-T600 MFL-T800 MFL-T1000
Product name 600W Flood light 800W Flood light 1000W Flood light
NW/Size 16.5kg/Dia471*407mm 23kg/Dia472*496mm 26kg/Dia472*496mm
Luminous Flux XML2 / >60000LM XHP50 / >80000LM XHP50 / >100000LM
Packing 550*550*360mm 630*530*450mm 630*530*450mm
Beam Angle 5/10/20/30/60° IP Grade IP66
CCT 2700-6500K PF Rate >0.95
luminous efficiency >100lm/w CRI >80
Life span 50000h Input voltage AC85-300V
