solar LED street light 100w LiFePO4 battery CE CB SOSA IECEE
20W/40W/60W/80W/100W/120W
Quick info
Mic launched the first solar panel with energy absorption on both sides, which has higher charging efficiency and can be used normally for 5 days in rainy days
- Description
- Specification
Solar street light

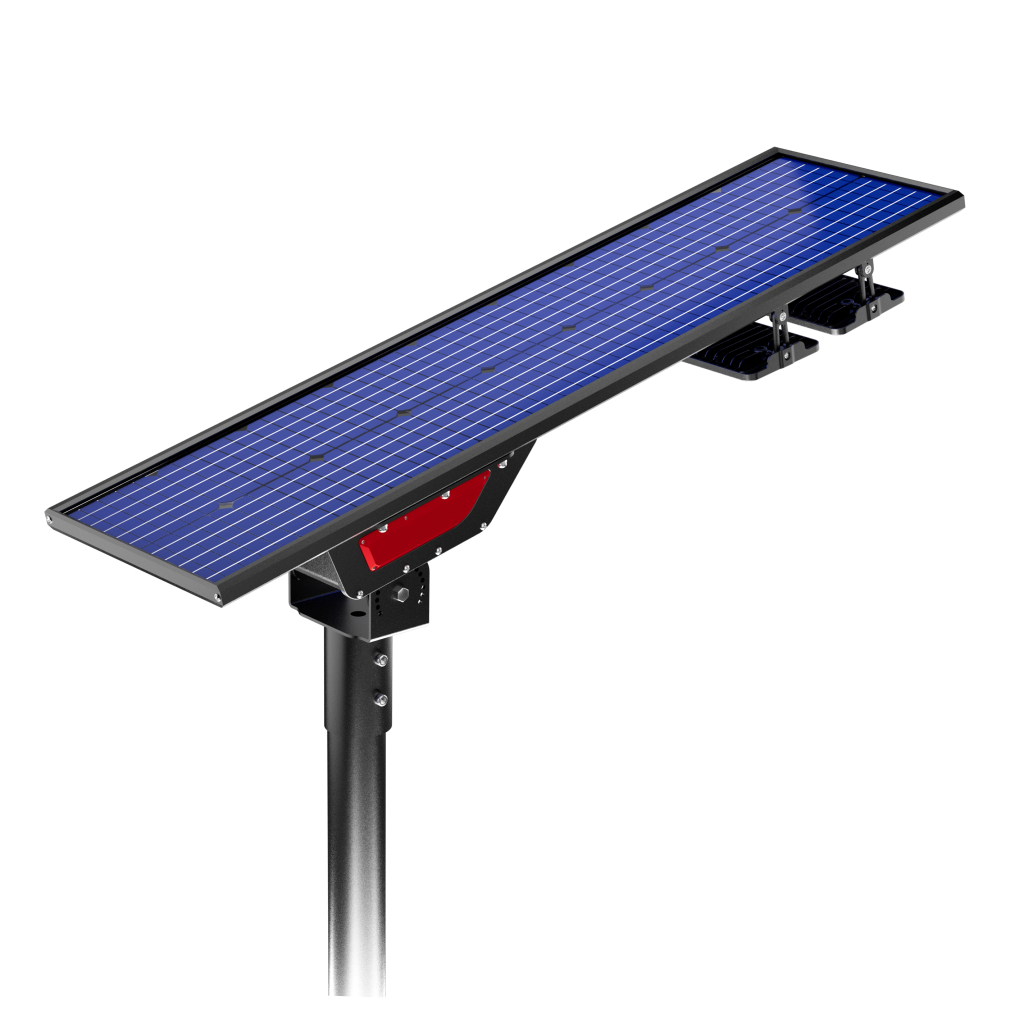

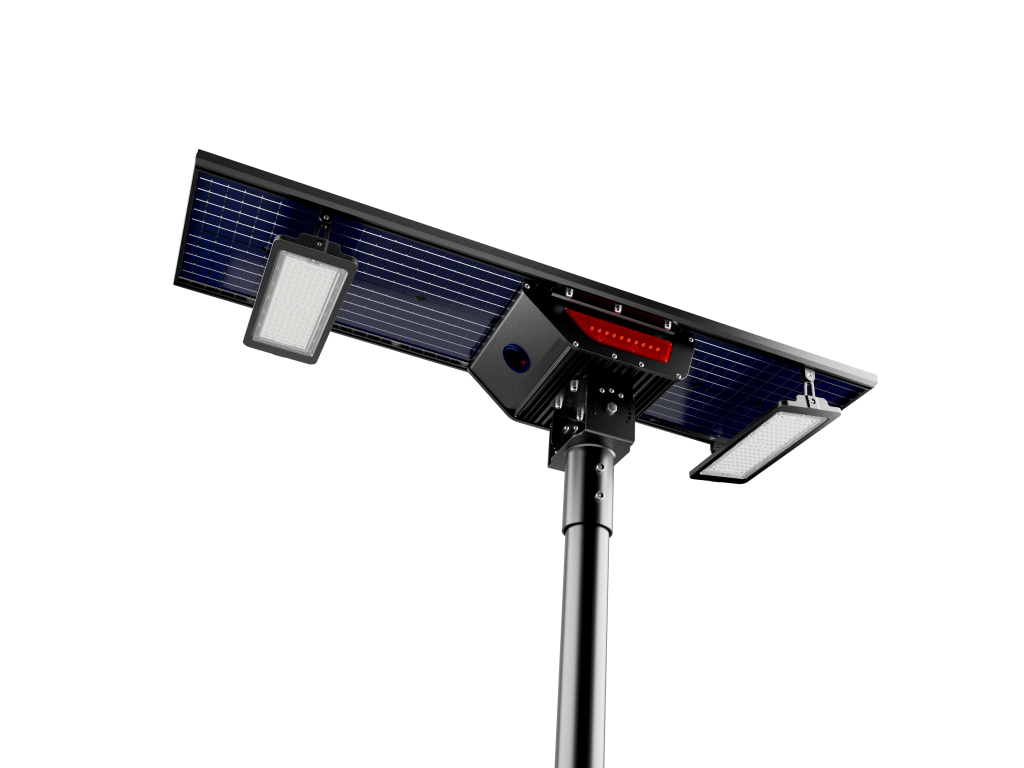

Double-sided solar panel bifacial integrated LiFePO4 Battery 30w 40w 60w 80w 100w 120w all in one solar street light
_____________________________________________________________________________________________________________________
Model | MS-230-1 | MS-240-1 | MS-260-1 |
Power | 20W | 40W | 60W |
Solar panel Max power | 36V / 45W | 36V / 60W | 36V / 80W |
Battery Type | 3.2V / 240WH | 3.2V / 336WH | 12.8V / 460WH |
G.W | 12.5kg | 13.5kg | 17kg |
Product size | 730*390*200mm | 850*390*200mm | 1350*390*200mm |
Model | MS-280-1 | MS-2100-1 | MS-2120-1 |
Power | 80W | 100W | 120W |
Solar panel Max power | 36V / 100W | 36V / 105W | 36V / 105W |
Battery Type | 12.8V / 537WH | 25.6V / 615WH | 25.6V / 768WH |
G.W | 19kg | 23kg | 23kg |
Product size | 1600*390*200mm | 1720*390*200mm | 1720*390*200mm |
led chip brand | SMD 3030 | CCT | 6000-6500k |
Light distribution | Batwing lens with polarized light | Space between light | 25-30M |
Lighting time | 5-7 rainy days | Warranty period | 3 years |
Working TEMP | -20~+60 | LED life time | 50000h |
---ALL IN ONE LED solar street light
The design of the integrated solar street light/garden light absorbs the inspiration and energy from the universe, and combines today's best green energy portfolio (solar energy, semiconductor LED light source, dedicated battery for street lights). It uses excellent practical control technology, such as micro controller, thermal infrared human body induction etc., combines with the simple integrated structure design, perfect achieve higher brightness with lower power consumption,
(average 6w power consumption equals 100w incandescent lamp's illumination) , long life span and free maintenance, excellent waterproof and heat dissipation, at the same time with convenient installation.
Working time data is based on charging 8 hours in the sunny summer, measured in north latitude 22°, east diameter 13°.Actual working time may be changed due to different installation area, season, environment, direction etc.
Rotating angle designThe illumination area and angle of light can be adjusted reasonably according to the
width of the road
Intelligent charge and discharge managementDouble protection of charging and discharging by software and hardware, and intelligent equalization technology, cycle charging and discharging more than 2000 times
Indicator lights of battery capacityThe current capacity of the battery will be displayed by this red light
Certifications

MIC Led lights certifcated with ETL,FCC,CE,ROHS,TUV, Popular used for replace warehouse high bay and street bulb, using in petrol station, garden, super market, shop etc.

ABOUT US
Shenzhen Top-branded Enterprise and China Advanced Enterprise in Harmonious Labor Relations.We independently design and manufacture LED products ranging from High Power LED Street Light to the other LED lights, which qualify us to be one of the largest manufacturers, suppliers and exporters of LED lighting and solar lights in China, as well as the leading provider in energy-saving solutions.
_____________________________________________________________________________________________________________________
–Exported to more than 80 countries –Our Main Market is Europe, North
–WELCOME OEM & ODM —American, Australia, Southeast Asia, etc.
Why choose US

We use Dialux software to simulate luminous effect,so as to make sure our proposals meet clients’requirements.
Our PMC department follow the production and we can report to you at any time about the production by photos and videos.

We have IQC,IPQC and OQC during the production, guarantee the products.
We have the largely capacity and quickly finish the cargos in a short time with our experienced production team.
