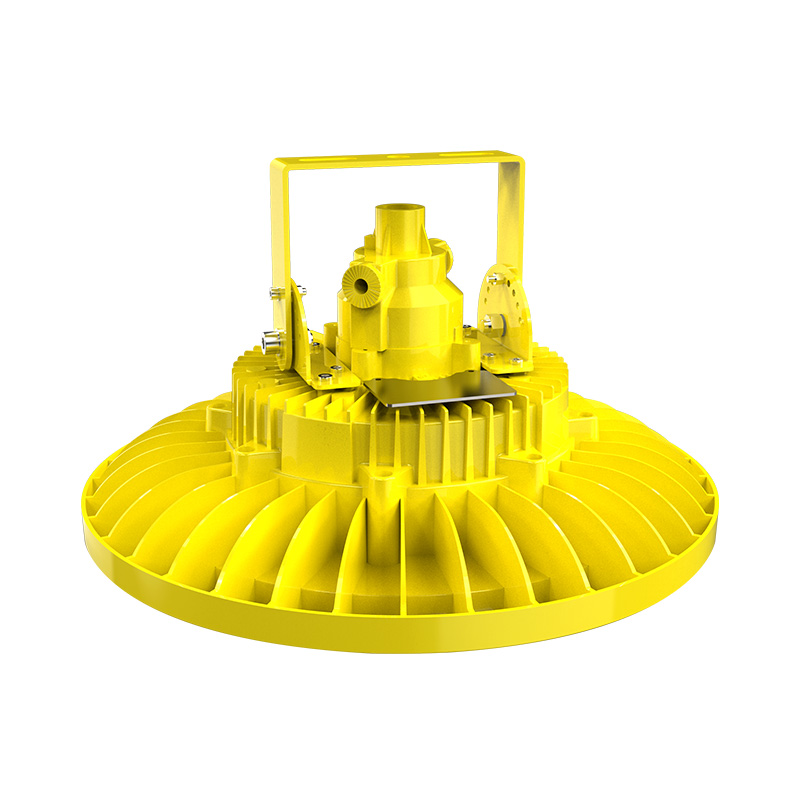

LED UFO high bay ATEX explosion proof light 100W / 200W

Min. Order Quantity: 20pcs

Quick info

LED explosion-proof lamps are the most energy-saving explosion-proof lamps, widely used in oil fields-power plants-chemical plants-petroleum-troops.

Prev Quote Now Next
  • Description
  • Specification

led ufo high bay atex explosion proof led light, led ufo high bay atex explosion proof led light

LED explosion-proof light is a kind of explosion-proof light. Its principle is the same as that of explosion-proof lamp, except that the light source is LED light source, which refers to various specific measures adopted to prevent the ignition of the surrounding explosive mixture such as explosive gas environment, explosive dust environment, and gas Measures the lamps. LED explosion-proof lamps are the most energy-saving explosion-proof lamps, widely used in oil fields-power plants-chemical plants-petroleum-troops.



The explosion-proof lamp adopts high-quality LM80 certification chip and ultra-clear tempered glass, so that the light transmission of explosion-proof lamp is better. Die casting aluminum shell and reliable long-life power supply make the rated life of explosion-proof lamp more than 5000 hours, saving 70% - 80% compared with HPS / MH. The working temperature can be operated from - 40 ℃ to + 50 ℃. It is certified by the United States ul844; ul1598;Canada CAS137,;CAS250.0, and the luminous flux is up to 120lm / W, which has the industry leading effect.


Technology Parameters

Model No.


LED Source



5000K (Provides 2700K to 6500K)

Luminous Efficency


Beam Supply



100-277Vac 50-60Hz





IP Rating


Operating Temp.

-40°C to +50°C (-40°F to 122°F)



UL844 Approved

 Class I,Division 2



Watt Options

100W / 120W / 150W / 185W / 200W

Net Weight (KG)

14.3 kg



When replacing the bulb (tube), the explosion proof joint surface of the explosion-proof lamp shall be properly protected to prevent damage; the cleaned explosion proof surface shall be coated with phosphatizing paste or 204-1 anti-rust oil, and no other paint shall be applied; the explosion proof surface shall not have rust layer, and if it has slight rust, it shall be cleaned without pitting. To increase safety type lamps and lanterns, dustproof and waterproof, ensure that the sealing ring intact, reliable, is particularly important. If the seal damage is serious, to use the same specifications and materials with the seal replacement, if necessary, to replace the entire lamp. Pay attention to whether the lampshade is in good condition or not, and replace it in time if it is damaged.


LED UFO high bay LED UFO high bay LED UFO high bay

--------Click for more Information--------


By sea
Delivery from Shenzhen seaport
By air
Departure from Shenzhen airport
By express


We welcome use Trade Assurance, you'll enjoy

1, 100% product quality protection
2, 100% on-time shipment protection
3, 100% payment protection for your covered amount

Contact Us
Facebook Skype Twitter
 Instagram  Web site
 miclight2019  www.mic-led.com ShenZhen, China

MIC LED welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-755-89313334

contact us

Packaging & Delivery

Selling Units:Single item
Single package size: 140X30X23 cm
Single gross weight:20.000 kg
