L Series High Bay Lights High lumen SMD 3030 LED chip.

Min. Order Quantity: 100pcs

Quick info

Since the establishment of our own brand MIC LED, with strong R&D capacity, professional technical team and rich experience in the industry, we launch new products beyond the customers' expectation every year, which always lead the industry trend.

  • Material: Die-casting Aluminum + PC cover
  • Life Span: 50000h
  • IP Grade: IP54
  • Guarantee: 3 years
Prev: No Previous Page Quote Now Next: No Next Page
  • Description
  • Specification

L Series High Bay

L Series High Bay

L Series High Bay

L Series High Bay

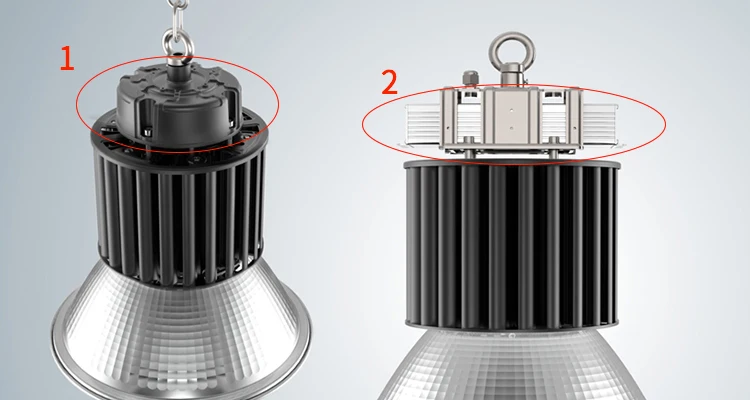

  1. L Series High Bay Round diver box version
    2. Square driver supply version.

L Series High Bay

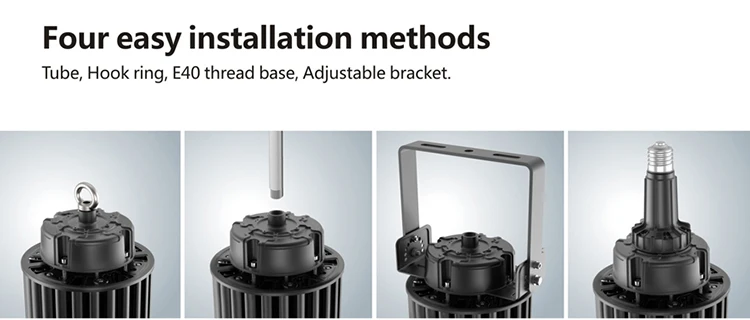

Four easy installation methods

1. Tube
2. Hook ring
3. Adjustable bracket
4. E40 thread base

led lamp
LED LampLM80 stanrd, CRI>80.
High lumen SMD 3030 LED chip.
L Series High Bay Luminous efficient >110lm/W, long lifespan.
Fixed by rotatory buckle, easily installed without tools
The reflector could be disassembled and transported. Separately with small size heaksink, is able to reduce at least 50% of the freight charges under the same conditions.
fixed by rotatory buckle
L Series High Bay
Curved design for better heat dissipation performance
The curved design increase the cooling area that dissipate the heat quickly.
Two types cover option
Frosted & transparent PC cover, with high light transmittance, good flame-retardance, wear-resistance and oxidation resistance.
two types cover option

Certifications

MIC led corn light certificated with ETL, FCC, CE, ROHS, TUV, Popular used for replacing warehouse high bay and street bulb, using in a petrol station, garden, supermarket, shop, etc.

certifications

About Us

Shenzhen Top-branded Enterprise and China Advanced Enterprise in Harmonious Labor Relations. We independently design and manufacture LED products ranging from High Power LED Street Light to the other LED lights, which qualify us to be one of the largest manufacturers, suppliers, and exporters of LED lighting and solar lights in China, as well as the leading provider in energy-saving solutions.

mic


mic-led-about

Why Choose Us

why choose us-1

1. We use Dialux software to simulate the luminous effect, so as to make sure our proposals meet clients' requirements.

2. Our PMC department follows the production and we can report to you at any time about the production by photos and videos.

why choose us-2

3. We have IQC, IPQC, and OQC during the production, guarantee the products.

4. We have a large capacity and quickly finish the cargos in a short time with our experienced production team.

E40 E39 E27 25w-120w-detail-19

MIC LED welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. Hotline: 0086-755-89313334.

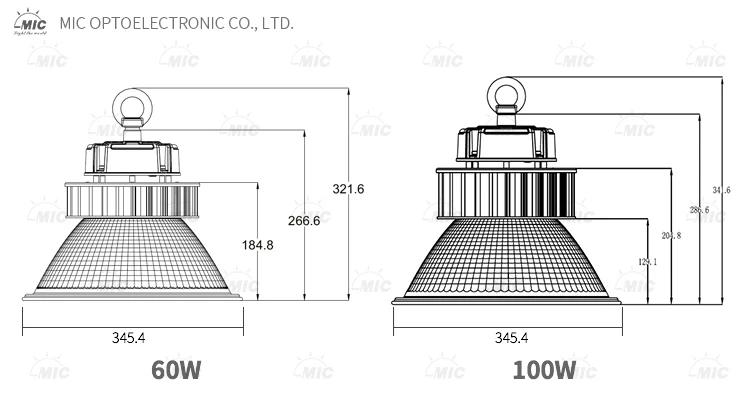

Model No. MHB-U160 MHB-U100
Power Consumption 60w High Bay Light 100w High Bay Light
NW/Size 4.8kg/H322*D345mm 5.5kg/H342*D345mm
Luminous Flux >6600lm >11000lm

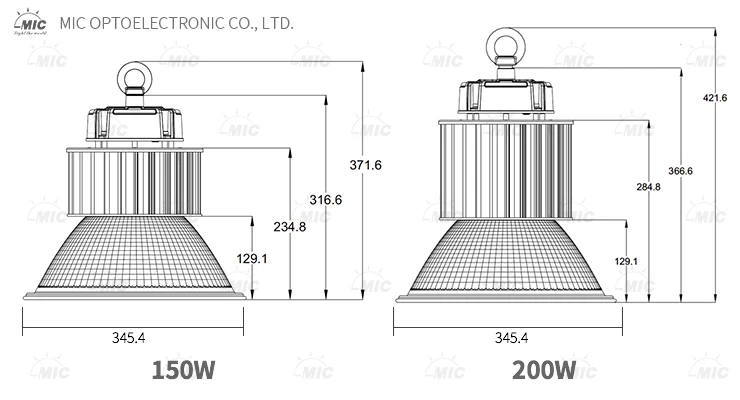

Model NO. MHB-L150 MHB-L200
Power Consumption 150w High Bay Light 200w High Bay Light
NW/Size 6.9kg / H372*D345mm 7.8kg / H422*D345mm
Luminous Flux >16500LM >22000LM
Beam Angle 20°, 60°, 100° IP Grade IP54
CCT 2700-6500k PF Rate >0.95
Material Die-casting Aluminum + PC cover LED Lamp SMD 3030
Luminous Flux 110lm/w Guarantee 3 years
