Solar street light
Double-sided solar panel bifacial integrated LiFePO4 Battery 30w 40w 60w 80w 100w 120w all in one solar street light
_____________________________________________________________________________________________________________________
| Model | MS-230-1 | MS-240-1 | MS-260-1 |
| Power | 20W | 40W | 60W |
| Solar panel Max power | 36V / 45W | 36V / 60W | 36V / 80W |
| Battery Type | 3.2V / 240WH | 3.2V / 336WH | 12.8V / 460WH |
| G.W | 12.5kg | 13.5kg | 17kg |
| Product size | 730*390*200mm | 850*390*200mm | 1350*390*200mm |
| Model | MS-280-1 | MS-2100-1 | MS-2120-1 |
| Power | 80W | 100W | 120W |
| Solar panel Max power | 36V / 100W | 36V / 105W | 36V / 105W |
| Battery Type | 12.8V / 537WH | 25.6V / 615WH | 25.6V / 768WH |
| G.W | 19kg | 23kg | 23kg |
| Product size | 1600*390*200mm | 1720*390*200mm | 1720*390*200mm |
| led chip brand | SMD 3030 | CCT | 6000-6500k |
| Light distribution | Batwing lens with polarized light | Space between light | 25-30M |
| Lighting time | 5-7 rainy days | Warranty period | 3 years |
| Working TEMP | -20~+60 | LED life time | 50000h |

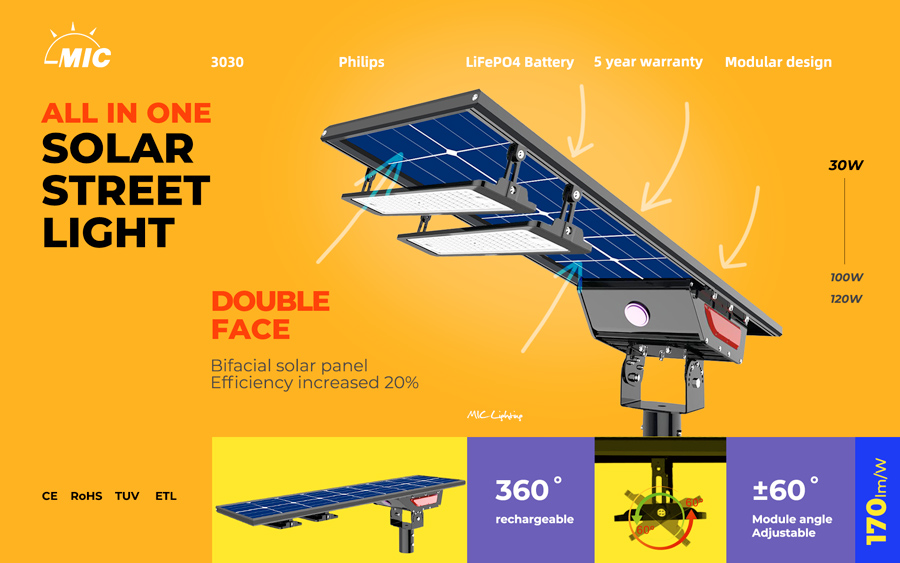

---ALL IN ONE LED solar street light
The design of the integrated solar street light/garden light absorbs the inspiration and energy from the universe, and combines today's best green energy portfolio (solar energy, semiconductor LED light source, dedicated battery for street lights). It uses excellent practical control technology, such as micro controller, thermal infrared human body induction etc., combines with the simple integrated structure design, perfect achieve higher brightness with lower power consumption,
(average 6w power consumption equals 100w incandescent lamp's illumination) , long life span and free maintenance, excellent waterproof and heat dissipation, at the same time with convenient installation.
Working time data is based on charging 8 hours in the sunny summer, measured in north latitude 22°, east diameter 13°.Actual working time may be changed due to different installation area, season, environment, direction etc.
Rotating angle designThe illumination area and angle of light can be adjusted reasonably according to the
width of the road
Intelligent charge and discharge managementDouble protection of charging and discharging by software and hardware, and intelligent equalization technology, cycle charging and discharging more than 2000 times
Indicator lights of battery capacityThe current capacity of the battery will be displayed by this red light
Certifications
MIC Led lights certifcated with ETL,FCC,CE,ROHS,TUV, Popular used for replace warehouse high bay and street bulb, using in petrol station, garden, super market, shop etc.
