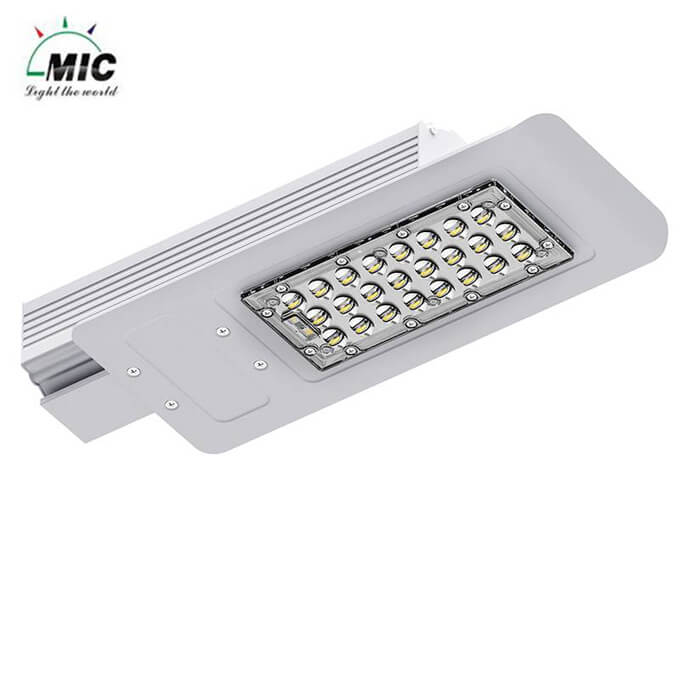

s series 30w street lamp-01

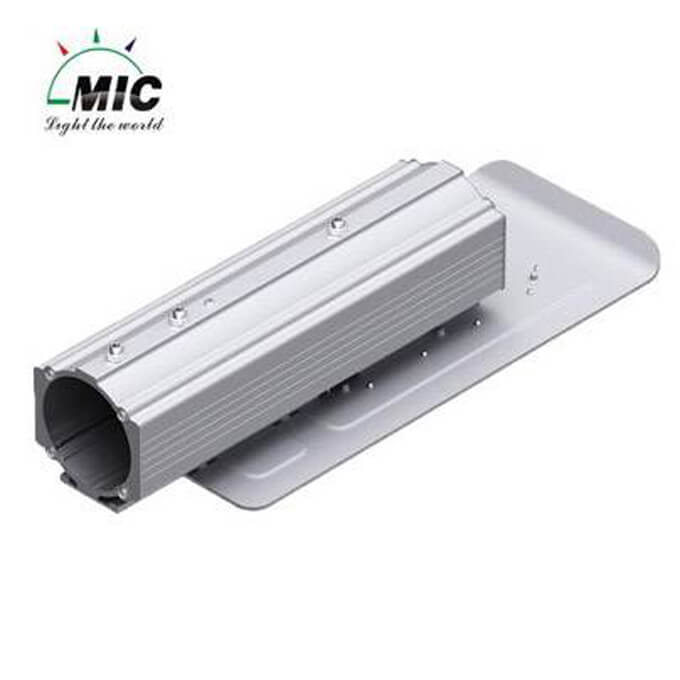

s series 30w street lamp-02

S Series 30w Street Lamp

Min. Order Quantity: 100pcs

Quick info

Since the establishment of our own brand MIC LED, with strong R&D capacity, professional technical team and rich experience in the industry, we launch new products beyond the customers' expectation every year, which always lead the industry trend.

  • Lamp Materials: Aluminum heat sink + Optical Lens
  • Lamp Lifetime: >50000h
  • IP Rating: IP67
  • Power Factor: >0.95
Prev Quote Now Next
  • Description
  • Specification

S Series 30w Street Lamp

S Series 30w Street

Features

  • Adopting integrated design of driver box and arm., so the shade is compact and elegant.
  • With instant startup and cozy lighting output, it is ensured with excellent performance.
  • Also long lifespan, high efficiency and economic in cost make it an environmentally friendly product.
  • With two specifications of the light pole's back cover.
  • ø60mm and ø40mm, with a protection grade reaching IP67
  • Light weight, installation and maintain easily.
  • It can withstand a level 17 hurricane.
  • low cost and high quality, highly cost effective.
  • It is applicable on occasions like roads in countryside, park and residential area.

Application

1. The use of the whole aluminum lamp cooling technology, perfect and efficient solution to the problem of LED cooling, a large range of light source.
2. Anti-dust and anti-staying water design, reduce the maintenance of cleaning up the pressure, suitable for outdoor environment.
3. The design of the shape and structure of the ultra-thin patent, which is convenient for storage and transportation and maintenance.
4. Protection level of IP67.
5. The 5 shell of the paint and anodizing, strong corrosion resistance.
6. Widely used in trunk roads, highways, elevated roads, urban streets, bridges, sidewalks and other road lighting, as well as square, schools, residential areas, industrial parks, parks, and other outdoor lighting.

Lens optional
Symmetrical PC lens: 20/40/60/60/90˚
Asymmetrical PC lens: 100*140˚
1060 Aluminum
Commercially pure aluminum, high aluminum content and purity, high corrosion resistance and high thermal conductivity. Outstanding performance, with excellent thermal conduction effect that general aluminum alloy can not be.Beam angle
Module's beam angle can be adjustable.
Driver Box
Intelligent temperature control branded driver used with 5 years long time warranty,960w LED Flood Light is aluminum drive house with IP67 waterproof, and it can fast conduct the heat from the driver to be out.
About Us

Shenzhen Top-branded Enterprise and China Advanced Enterprise in Harmonious Labor Relations. We independently design and manufacture LED products ranging from High Power LED Street Light to the other LED lights, which qualify us to be one of the largest manufacturers, suppliers, and exporters of LED lighting and solar lights in China, as well as the leading provider in energy-saving solutions.

Lens optional
Symmetrical PC lens: 20/40/60/60/90˚
Asymmetrical PC lens: 100*140˚
1060 Aluminum
Commercially pure aluminum, high aluminum content and purity, high corrosion resistance and high thermal conductivity. Outstanding performance, with excellent thermal conduction effect that general aluminum alloy can not be.Beam angle
Module's beam angle can be adjustable.
Driver Box
Intelligent temperature control branded driver used with 5 years long time warranty,960w LED Flood Light is aluminum drive house with IP67 waterproof, and it can fast conduct the heat from the driver to be out.
About Us

Shenzhen Top-branded Enterprise and China Advanced Enterprise in Harmonious Labor Relations. We independently design and manufacture LED products ranging from High Power LED Street Light to the other LED lights, which qualify us to be one of the largest manufacturers, suppliers, and exporters of LED lighting and solar lights in China, as well as the leading provider in energy-saving solutions.

Lens optional
Symmetrical PC lens: 20/40/60/60/90˚
Asymmetrical PC lens: 100*140˚
1060 Aluminum
Commercially pure aluminum, high aluminum S Series 30w Street content and purity, high corrosion resistance and high thermal conductivity. Outstanding performance, with excellent thermal conduction effect that general aluminum alloy can not be.Beam angle
Module's beam angle can be adjustable.
Driver Box
Intelligent temperature control branded driver used with 5 years long time warranty,960w LED Flood Light is aluminum drive house with IP67 waterproof, and it can fast conduct the heat from the driver to be out.
About Us

Shenzhen Top-branded Enterprise and China Advanced Enterprise in Harmonious Labor Relations. We independently design and manufacture LED products ranging from High Power LED Street Light to the other LED lights, which qualify us to be one of the largest manufacturers, suppliers, and exporters of LED lighting S Series 30w Street and solar lights in China, as well as the leading provider in energy-saving solutions.

Item 30w LED street light
Model No. MSL-S30
Power Consumption 30W
Lamp Lumen >3600lm
LED Brand Osram 3030 LEDs
LED Lumen 140-160lm/w
Input Voltage AC85-277V, 50-60Hz
Power Factor >0.95
Color Temperature 2700-6500K
Installation Type Screw fixed installation
Light Beam 140 degree in horizontal, 60 degree in vertical
THD <15%
Color Rendering Index >80
Lamp Materials Aluminum heat sink + Optical Lens
Lamp Lifetime >50, 000hours
IP Rating IP67
Net Weight (Kg) 5
Product Size (mm) 366*135*85mm
Application Street lighting, road lighting, square lighting, outdoor lighting, etc
