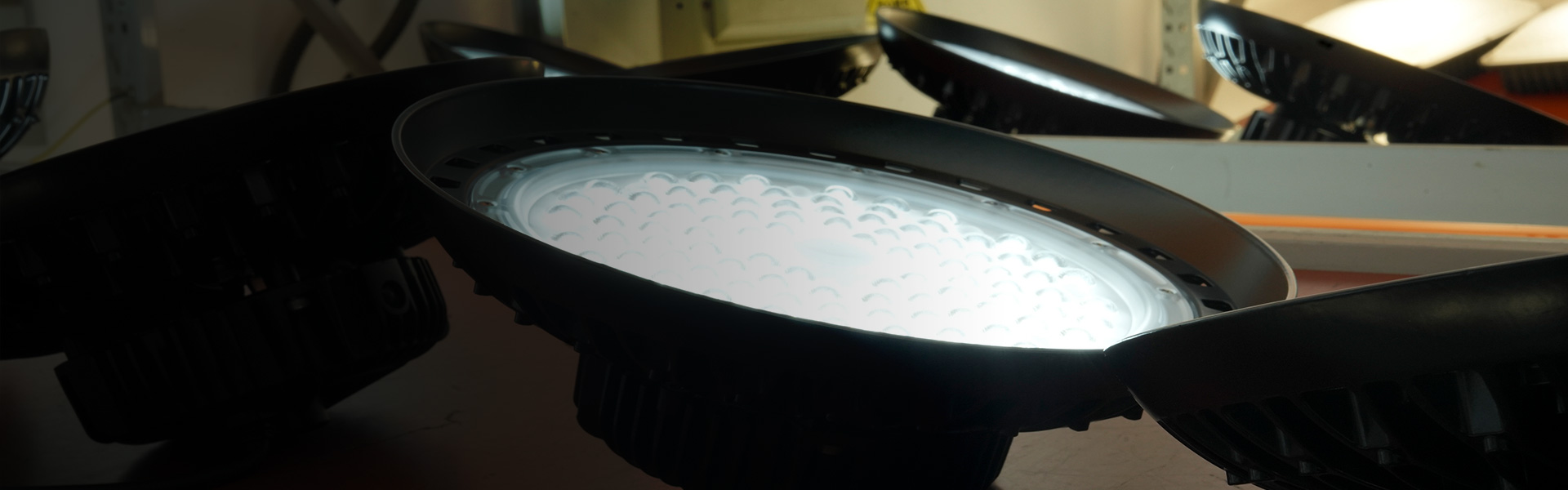

MHB-U-M-UFO High Bay Light

MHB-U-M UFO high bay light Introduction

Applicable Places

main factories, warehouses, workshops, docks, and other lighting



Model NO. MHB-U100-M MHB-U150-M MHB-U200-M
Power Consumption 100W UFO High Bay Light 150W UFO High Bay Light 200W UFO High Bay Light
NW/Size 2.9kg/Dia250*178mm 3.9kg/Dia345*183mm 5.5kg/Dia380*183mm
Luminous Flux >14000LM >21000LM >28000LM
Beam Angle 60°, 90°,120° IP Grade IP66
CCT 2700-6500K PF Rate >0.95
Material Die-casting Aluminum+PC cover CRI >80
Life span 50000h LED lamp SMD 3030
Luminous flux 130lm/w Guarantee 5 years



Product Features:

1: M Series UFO High Bay Light lamp shell adopts one-piece die-cast aluminum heat dissipation, the main body is round, and the power supply and main body bracket are installed on the back.

2: Shell structure: Due to the use of die-casting process, the entire lamp does not have too many joints, plus a waterproof sealing ring, the waterproof level of the lamp is IP65,

3: Functional characteristics: The angle of our M Series UFO High Bay Light lamp is 60/90/120 degrees. The bracket can be installed with a round power supply with hoisting ring, or a strip-shaped MEAN WELL power supply with an adjustable angle bracket.

MIC UFO High Bay VS HPS Lamp ROI Analysis (Direct Replacement)

   Light Source Item HPS High Bay MIC UFO High Bay light
Initial Investment Power of Light Source 250W 100W
QTY 10pcs 10pcs
Electric power consumption Power of Light Source 250W 100W
Distributor Ballast Driver
 75W
Line Loss(2%) 5W 2W
Transformer Loss(1%) 3W 1W
Reactive Compensation PF 0.80 PF 0.95
Power of Each Lamp 416W 108W
QTY 10pcs 10pcs
Total Power of Lamps 4.2kw 1.1kw
Daily Power Consumption 50 kwh 13.01 kwh
Yearly Power Consumption 18,204 kwh 4,749 kwh
10 years’ Power Consumption 182,044 kwh 47,488 kwh

Source and development:

The UFO high bay light is named for its unique appearance like UFO(unidentified flying objects). The high-precision fully automated equipment is used to produce aluminum cooling housing at one time. In addition, it has great heat dissipation performance and it’s waterproof and dustproof.

Furthermore, Adopting large quantity high bright SMD3030, offer uniform lighting performance. And our UFO highbay light use top brand Meanwell driver. It also has features of Long life and low light attenuation, and widely be used in harsh application environments outdoor and indoor.

As a new type of industrial high bay light, it uses lens light distribution design, which does not require additional reflector light distribution, so no need to worry about that easily deformed reflector during transportation, and the transportation cost is relatively low.

Composition of UFO high bay light

In addition, Aluminum fin with high thermal conductivity; integrated Meanwell driver with die-casting aluminum housing; also aluminum plate with high thermal conductivity; PC plane sealing cover with high light transmittance; large quantity imported high-brightness SMD3030 LED; equipped with a hook, easy mounting



Hook mounting: A circular driver is used for mounting, and then a round suspension ring is twisted to hang the entire lamp. This design is very convenient for replacing the original old pendant lamp.

Bracket mountin: Need to perforate firstly, which is relatively troublesome, but it has a wider range of applications. Therefore, it can be installed not only on the top of the room, but also on vertical walls, and can be mounted on inclined walls.

In addition, it can even be mounted on the ground to light up. This installation method uses a square bar-shaped driver. So, this bracket can also be adjusted at multiple angles, that is, the illumination direction of the lamp can be adjusted from 0 to 180 degrees, so the applicability is wider.

Production Process:

The housing is machine-molded at one time. So, the heat dissipation part has a hollow design, which can increase the heat dissipation surface, help transfer heat of lamp faster, and reduce weight.

In addition, a Waterproof design is adopted at the junction of the lamp body power cord and the joint of the lamp cover to ensure that the entire lamp is not affected by rain and moisture.

We also use the PHILIPS SMD3030 LED, which guarantees a 50,000-hour service life. We, therefore, offer two types of driver solution: normal CE approved driver(3 years warranty) and UL certified Taiwan Meanwell driver(5 years warranty).

The box material is kraft paper, and there is foam cotton + cardboard to fix the lamp body inside.

MIC is one of the largest manufacturers, suppliers, and exporters of LED lighting and solar lights in China, as well as the leading provider in energy-saving solutions.
