MFL-D-2 ရေကြီးမှုအလင်း
MFL-D-2 MIC Brightness Lead Light Light
LED floodlights are mainly used in single buildings, exterior wall lighting of historical buildings, building interior and
exterior lighting, green landscape lighting, billboard lighting, medical and cultural and other special facilities lighting, bars,
stadiums, stadiums, squares , Railway stations, ships, construction sites, tower cranes, and other lighting.
|
IETM နံပါတ်
|
MFL-D300-2
|
MFL-D600-2
|
MFL-D900-2
|
MFL-D1200-2
|
|
ပါဝါ
|
300W
|
600W
|
900W
|
1200W
|
|
မွာ / ဂW
|
6.5 ကီလိုဂရမ် / 7.5 ကီလိုဂရမ်
|
11.5kg / 13.5kg
|
17kg / 19.5kg
|
22.5kg / 25kg
|
|
ထုတ်ကုန်အရွယ်အစား
|
521*228*113mm
|
600*419*113mm
|
600*609*113mm
|
600*799*113mm
|
|
ပုံးအရွယ်အစား
|
624*291*176mm
|
663*482*176mm
|
663*672*176mm
|
865*672*176mm
|
|
IETM နံပါတ်
|
MFL-D500-2
|
MFL-D1000-2
|
MFL-D1500-2
|
MFL-D2000-2
|
|
ပါဝါ
|
500w
|
1000w
|
1500w
|
2000w
|
|
မွာ / ဂW
|
11.5kg / 13kg
|
23kg / 25kg
|
34.5kg / 37kg
|
36kg / 39kg
|
|
ထုတ်ကုန်အရွယ်အစား
|
721 * 273 * 122mm
|
762 * 504 * 122mm
|
762 * 736 * 122mm
|
762 * 966 * 122mm
|
|
ပုံးအရွယ်အစား
|
784 * 336 * 185mm
|
825 * 567 * 185mm
|
825 * 799 * 185mm
|
825 * 1029 * 185mm
|
|
အယ်လ်အီးဒီ
|
LM80 SMD 5050
|
CCT
|
2700-6500k
|
|
အိုင်ပီ
|
IP66
|
အလင်းတန်း
|
25 ° / 45 ° / 60 ° / 90 °
|
|
ယာဉ်မောင်း
|
Meanwell
|
အာမခံကာလ
|
5 နှစ်
|
|
အလုပ် TEMP
|
-၄၀~+၆၀
|
LED သက်တမ်း
|
50000 နာရီ
|
1500W LED ရေလွှမ်းမိုးမှု Module သည်မြင့်မားသောလျှပ်စစ်ဓာတ်အားပေးအားကစားကွင်းအလင်းအတွက်မြင့်မားသောဝင်ရိုးစွန်းမီးမောင်းထိုးစက်ကိုဒီဇိုင်းဆွဲသည်
Patent private mould, integrated die-casting AL.
High efficiency, 200lm/w available.
Professional anti-glare lens：PC full cutoff lens 20°/45°/60°/90°.
0/1-10V dimming, time control, light sensing, iot control and other functions are optional.
It is easier to install with laser pen assisted direction.
The protection level is IP66/IK08.
The angle of each module and the angle of the entire lamp can be adjusted.
Toughened glass panel, fixed without glue.
PLC or Lorawan can be used for remote intelligent control.
Meanwell/Moso/Sosen/Inventronics driver.

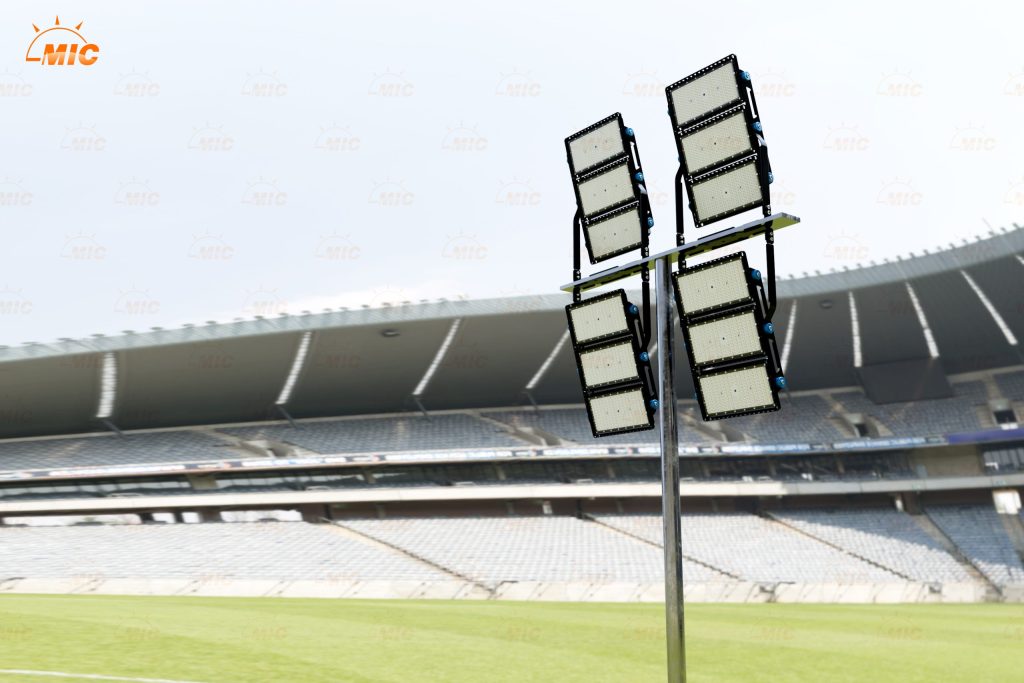

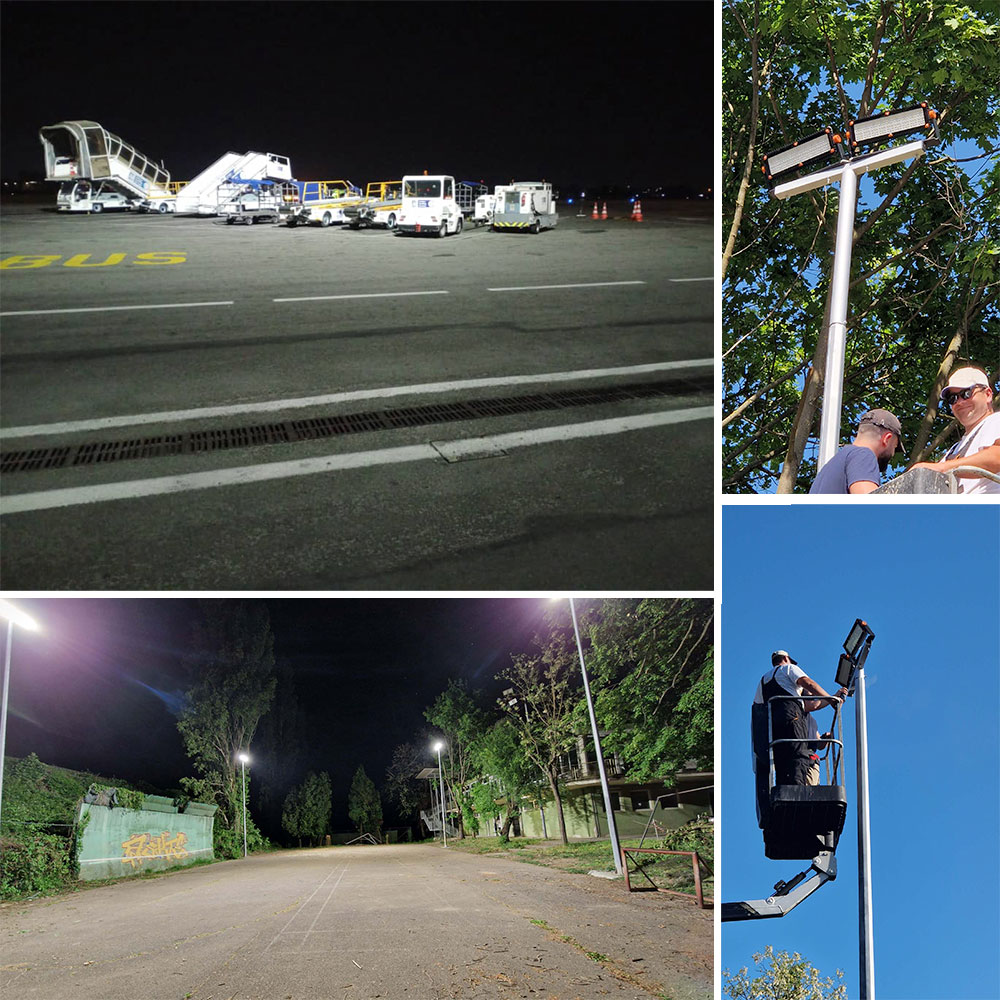

MFL-D-2 စီးရီးစီးရီးလေဆိပ်ဘောလုံးအားကစားကွင်းအလင်း
ရေလွှမ်းမိုးသောအလင်းကိုဒေါင်းလုပ်ဆွဲရန်ကိုနှိပ်ပါ
လက်မှတ်
LM-79,LM-80,LM-82,UL 1598,IEC 60598,IESNA,CIE,ANSI,NEMA,ANSLG C78.377-2008,JEDEC,ASTM,ISO 9227,IEEE Std 519 1992,EMC,IK08,IK10,IP66,IEC 62471,RoHS,CB,ENEC,SASO,SABER,IECEE,Energy Label,ISO45001,ISO9001,ISO14001,TM21,IP66
စံချိန်စံညွှန်းများပြဌာန်း
IEC 60598,IEC 60068,IEC 62471,IEC 60529,EN 55015,EN 60529,EN 50102,EN 61347,EN61384,EN 61547,EN 62493,IEC 62262,EN61000,EN 61547,IEC 62262,IEC 60068,ISO2039,ISO6508,IEC 62031,IEC 62778,TR 62778,IEC 62493,IEC 60384,IEC 60065,IEC 61032,IEC 60570,IEC 60664,IEC 61347,IEC 60227,IEC 60245,IEC 60603,IEC 62680,IEC 60320,IEC 61535,IEC 61984,IEC 60083,IEC 62209,IEC 62232,IEC 62493,EN 50525,IEC 62321,IEC 61643,IEC 60112,EN 60598-2-3:2003,EN IEC 60598-1,IEC 60598-2-3,IEC 60598-1,IEC 55015,IEC 61000,IEC61547
1500w LED ရေလွှမ်းမိုးမှု IP66 / IK08 20KV SPDအန်ဂျငျ, 0 / 1-10V dimming, အချိန်ထိန်းချုပ်ခြင်း, အလင်းရောင်ခံစားမှု, iot Control Smart Intelligence System
အထက်ဖော်ပြပါပုံများမှာ MFL-D-2 ရေကြီးမှုအလင်းဖြစ်ပြီး,

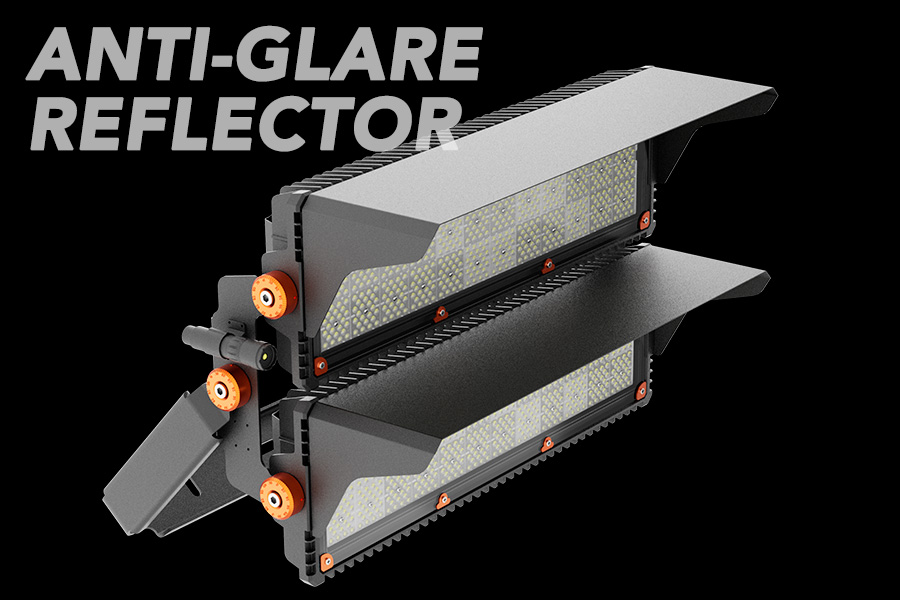

Hoods, spotting hoods, can change the angle of light and lower the UGR value, increasing the brim of the hat will have an additional cost increase.

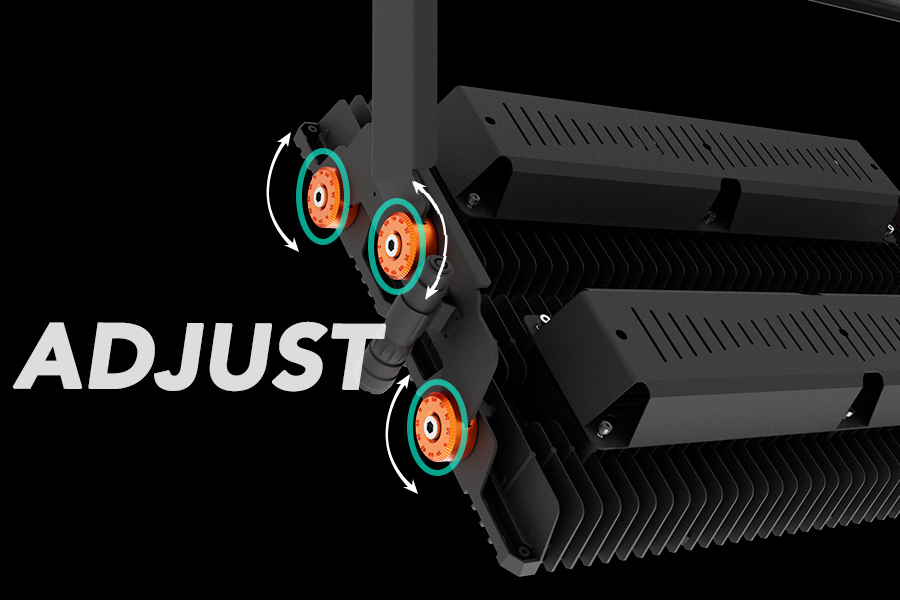

Each module can be adjusted individually, and the angle of the stand can also be adjusted individually.

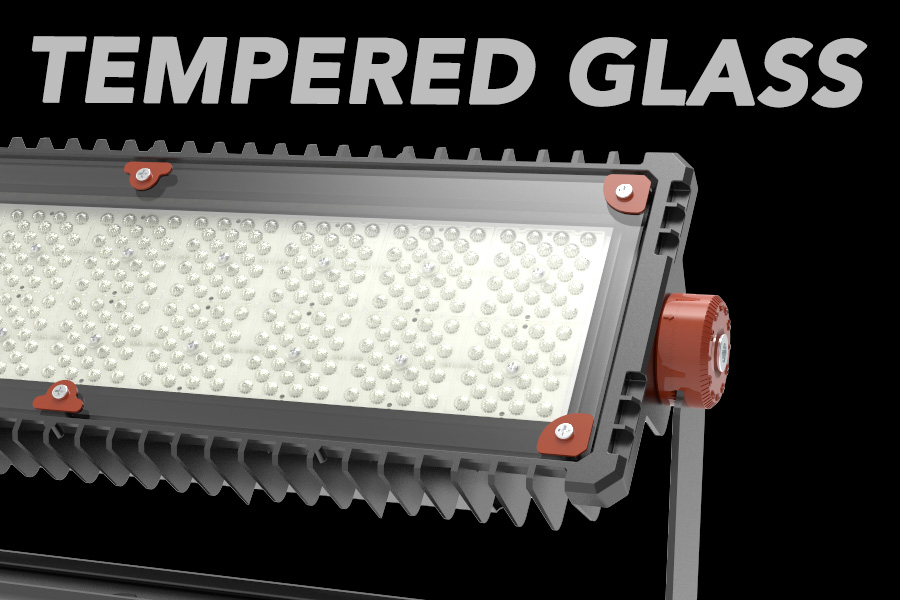

LED light-emitting surface with toughened glass, thickness up to 4 mm, in line with European requirements.

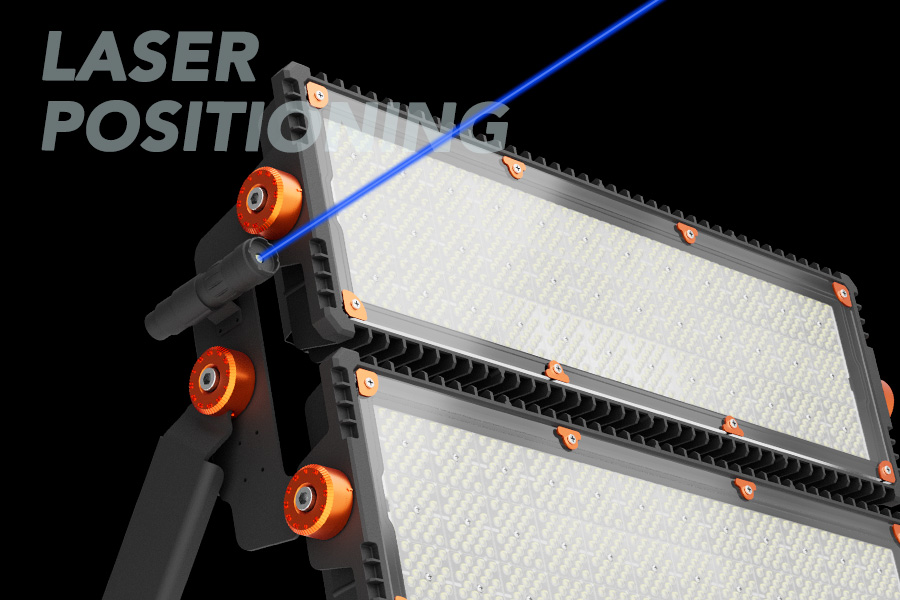

Laser pointer, used to assist in the installation of the light angle of the whole lamp.

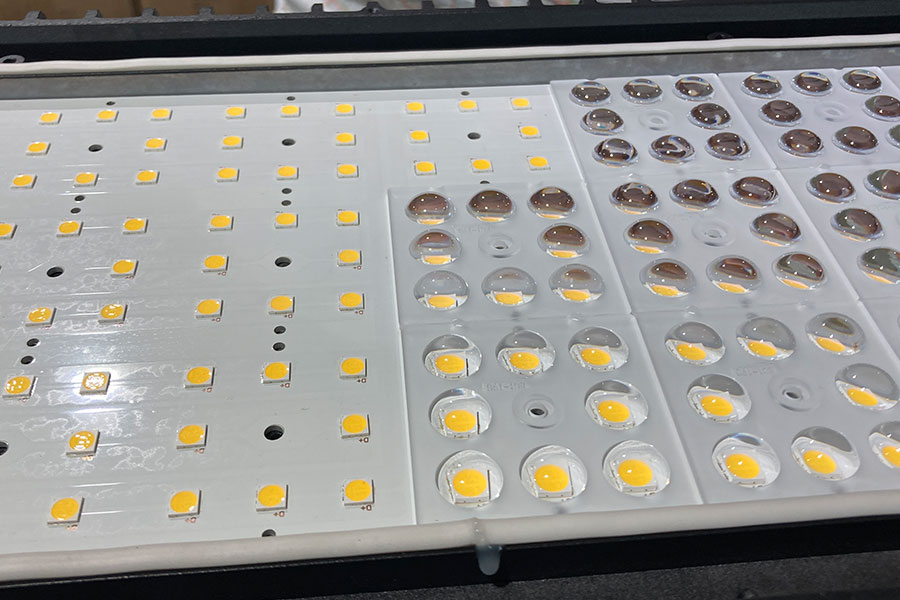

PC Lens, we choose high light transmittance and good quality. There are 25/40/60/90 degrees different angles to choose from

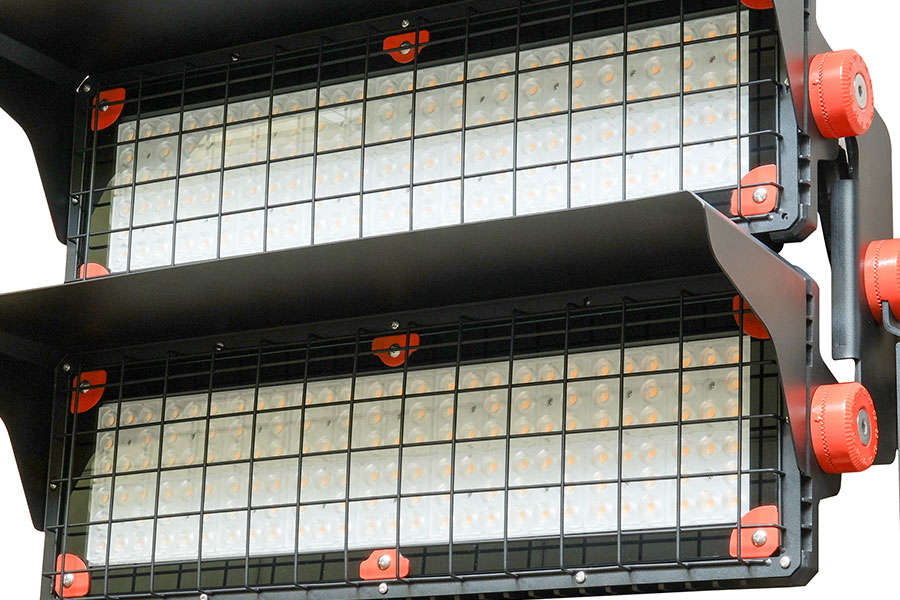

Protective wire mesh can effectively reduce the impact force from balls or stones, thereby protecting the service life of the lamps.

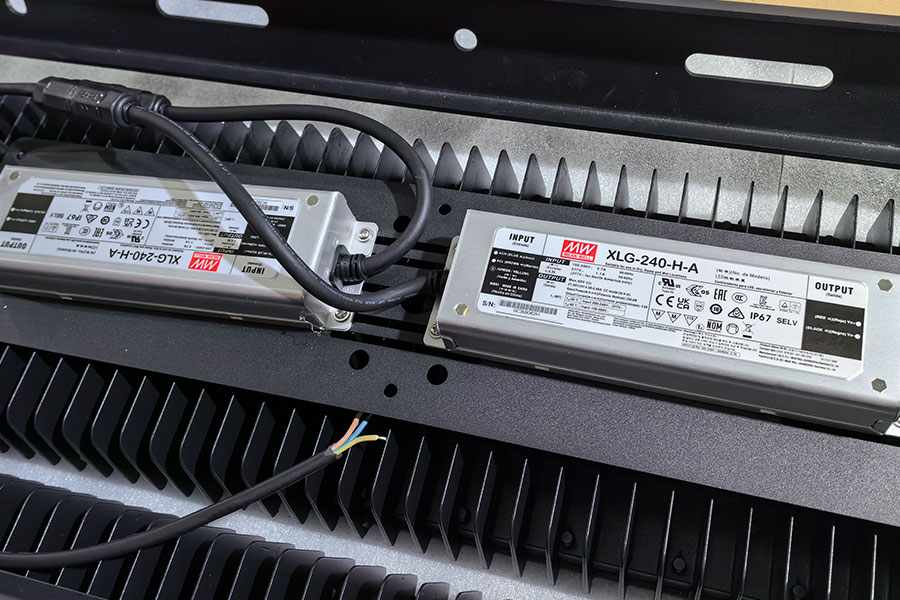

Use MeanWell brand power supplies. You can also choose other power supply brands such as sosen, moso, etc. And 10KV or 20KV SPD is optional.
High efficiency, 200lm/w available.

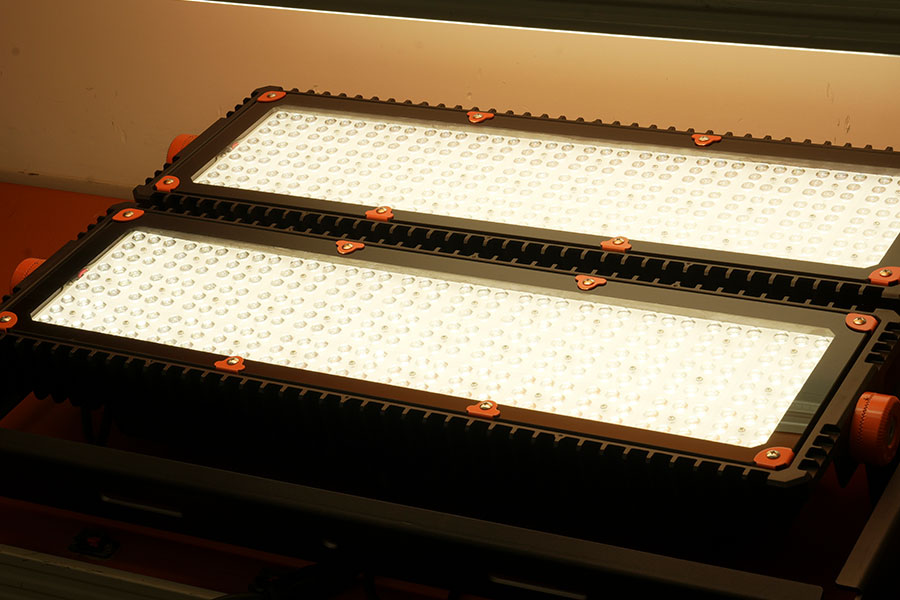

24-48 hour aging test.
If you don't know how to choose the lamps you need, you can contact us through email, message,whatsapp or other means. We will provide you with the most suitable solution and also offer professional Dailux reports.
