exterior led flood lights 50w60w75w-7500-12000lumens-4 kind of brackets
MFL-S50/60/80-M1
Quick info
led exterior flood lights used SMD2835 leds, has 4 kind of brackets, slip-fitter,kunckle,yoke,trunnion,MFL-S50/60/80-M1 series.
- Description
- Specification
exterior led flood lights are mainly used in single buildings, exterior wall lighting of historical buildings, building interior and
exterior lighting, green landscape lighting, billboard lighting, medical and cultural and other special facilities lighting, bars,
stadiums, stadiums, squares , Railway stations, ships, construction sites, tower cranes, and other lighting.
led exterior flood light feature
- Patent private mould, integrated die-casting AL.
- High efficiency, 150lm/w available.
- Professional anti-glare lens：PC full cutoff lens 105°*105°.
- The protection level is IP66/IK08.
- Toughened glass panel, fixed without glue.
- 4 kind of brackets,Slip-fitter,Knuckle,Yoke,Trunnion.
- Meanwell/Moso/Sosen/Inventronics driver.
MFL-D-2 series flood light case of Airport football stadium lighting
Click to download the flood light certificate
Certificate
LM-79,LM-80,LM-82,UL 1598,IEC 60598,IESNA,CIE,ANSI,NEMA,ANSLG C78.377-2008,JEDEC,ASTM,ISO 9227,IEEE Std 519 1992,EMC,IK08,IK10,IP66,IEC 62471,RoHS,CB,ENEC,SASO,SABER,IECEE,Energy Label,ISO45001,ISO9001,ISO14001,TM21,IP66
Enforce standards
IEC 60598,IEC 60068,IEC 62471,IEC 60529,EN 55015,EN 60529,EN 50102,EN 61347,EN61384,EN 61547,EN 62493,IEC 62262,EN61000,EN 61547,IEC 62262,IEC 60068,ISO2039,ISO6508,IEC 62031,IEC 62778,TR 62778,IEC 62493,IEC 60384,IEC 60065,IEC 61032,IEC 60570,IEC 60664,IEC 61347,IEC 60227,IEC 60245,IEC 60603,IEC 62680,IEC 60320,IEC 61535,IEC 61984,IEC 60083,IEC 62209,IEC 62232,IEC 62493,EN 50525,IEC 62321,IEC 61643,IEC 60112,EN 60598-2-3:2003,EN IEC 60598-1,IEC 60598-2-3,IEC 60598-1,IEC 55015,IEC 61000,IEC61547
led exterior flood light IP66/IK08 20KV spd LoRaWan, 4 types of brackets for a wide range of applications
The above pictures are MFL-S-M1 flood light with hood, and different installation angles, the following is a detailed introduction to this high bay light.
Knuckle bracket
The knuckle mount is a compact bracket with an adjustable swivel head, often threaded for direct installation into an electrical box or wall. Its articulation allows for easy multi-directional aiming, making it an excellent choice for façade lighting, sign illumination, or landscape lighting.

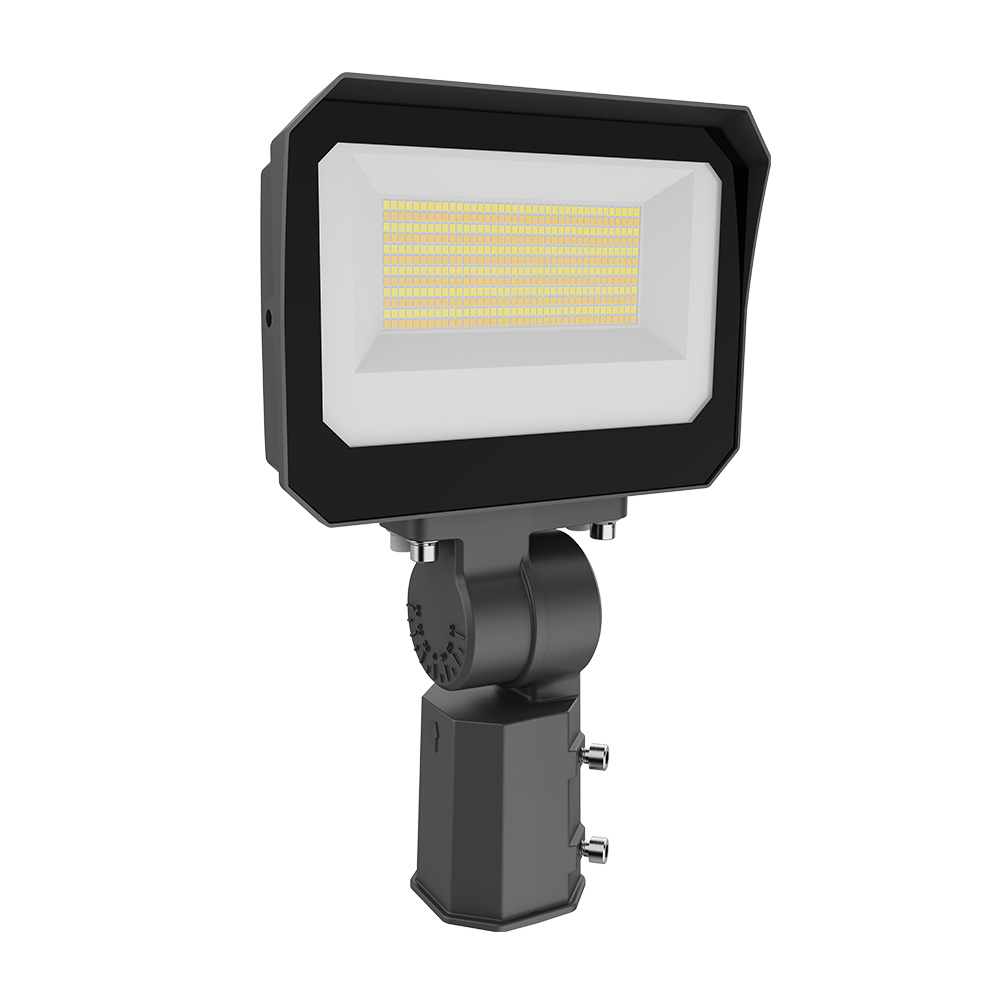

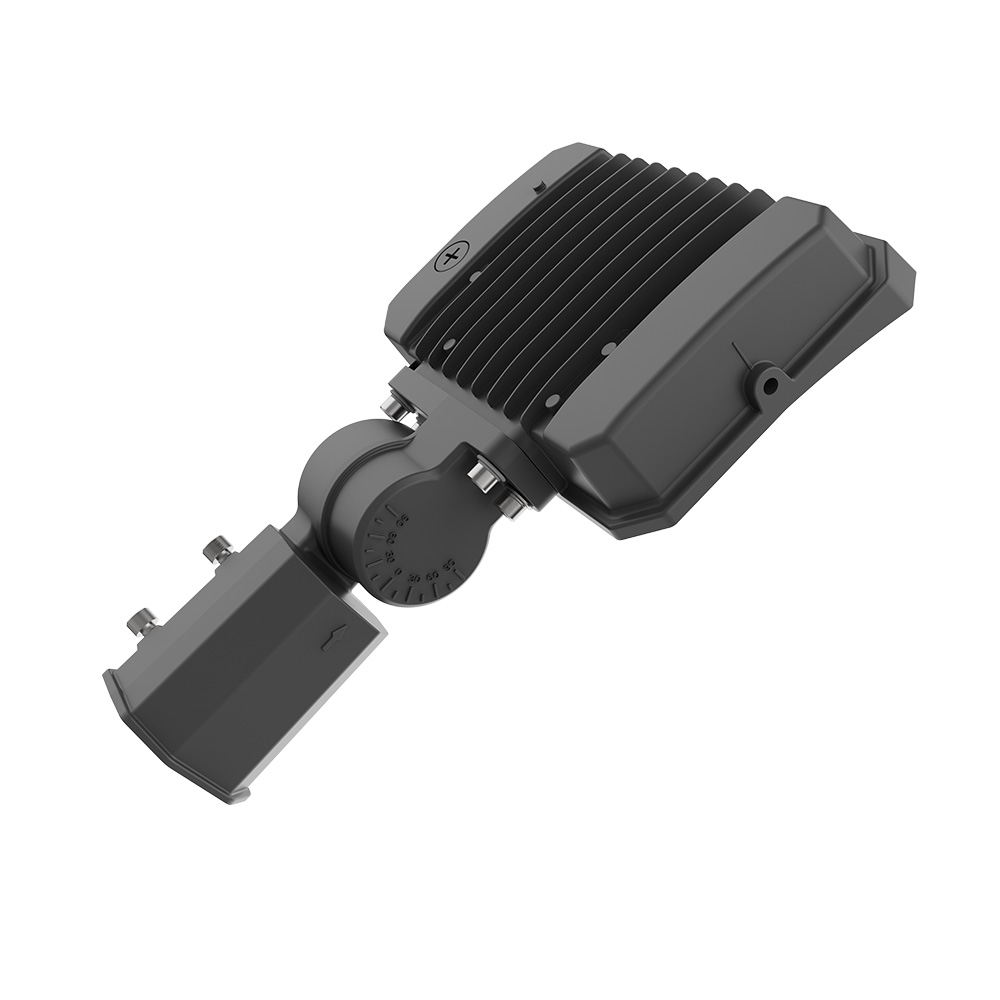

Slip-fitter bracket
Slip Fitter adapter fits onto poles,C-Bracket that is attached to the light is mounted onto the slip fitter,Perfect for any application that requires a pole mount.This heavy duty steel adapter is powder coated for weather resistance
Trunnion brackets
LED shoebox light trunnion mounting brackets for flood light,Trunnion mounting bracket for led sheobox light, flood light,180 degree light angle adjustable

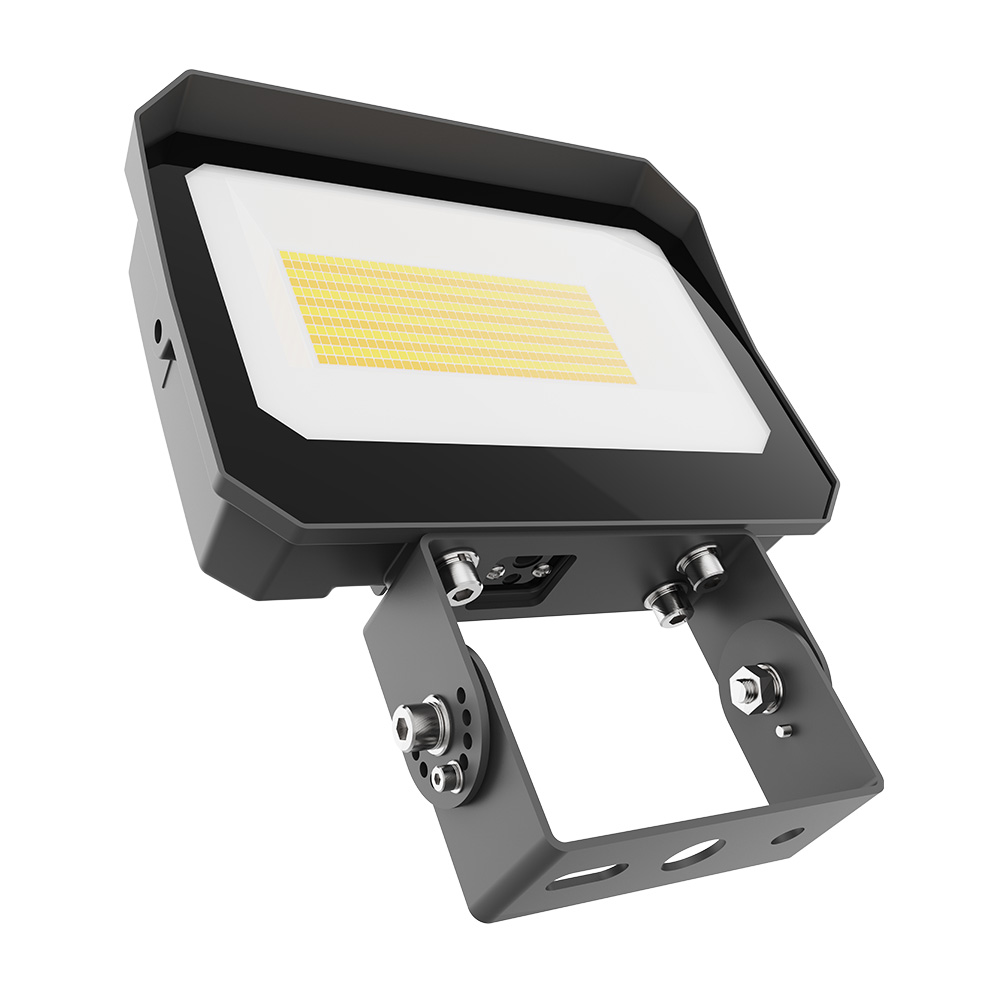

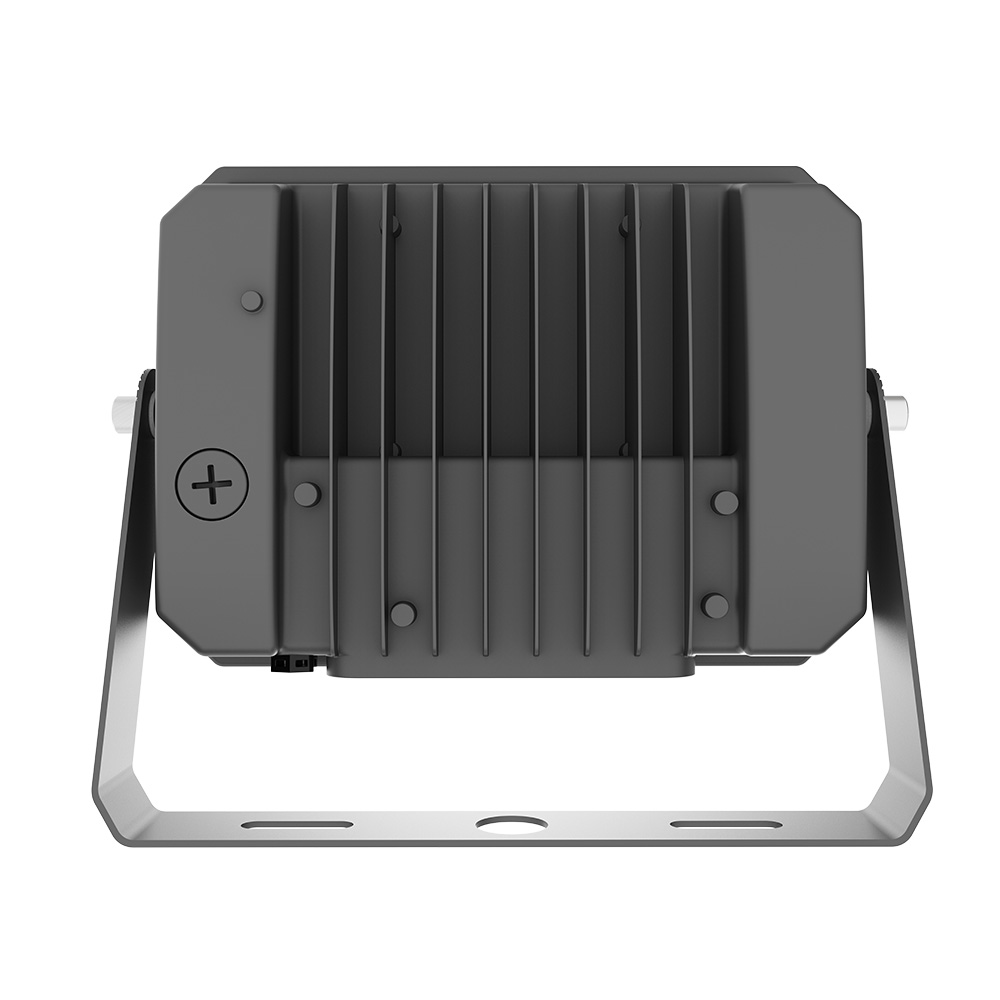

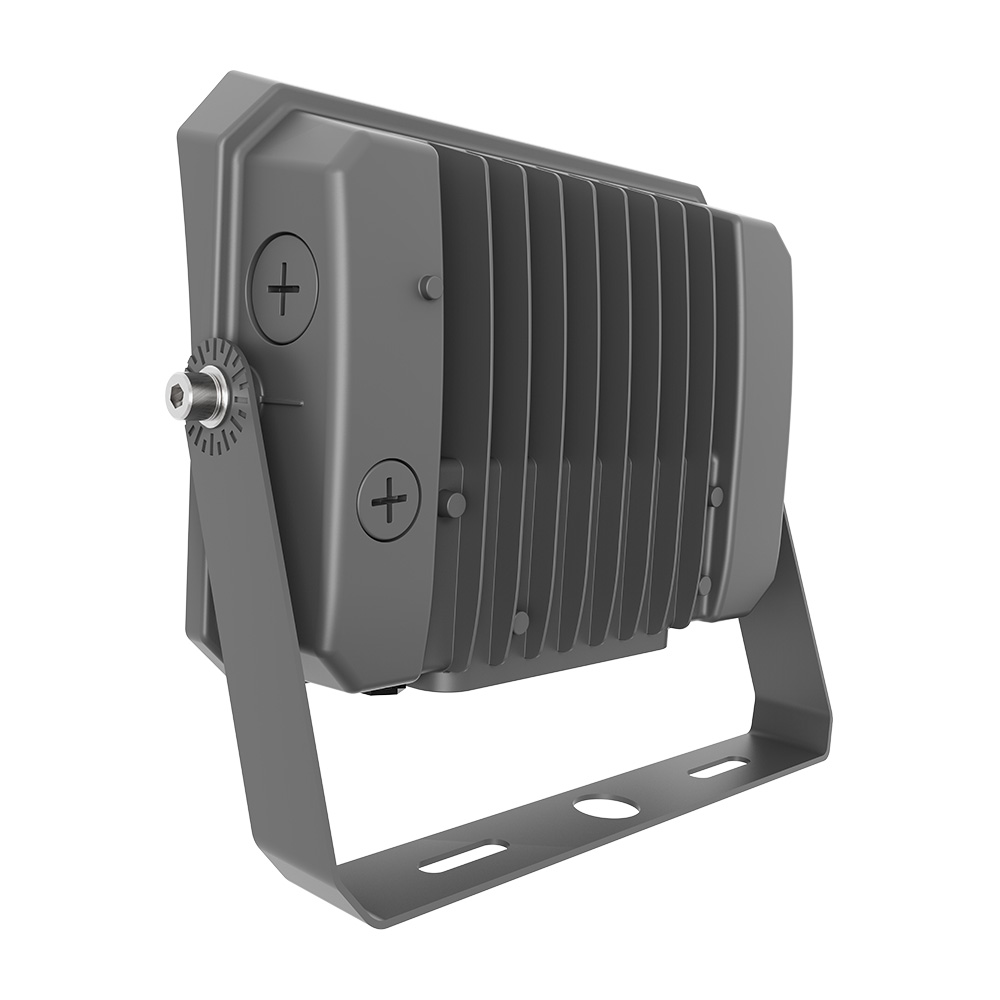

U-bracket
A very widely used type of bracket
If you don't know how to choose the lamps you need, you can contact us through email, message,whatsapp or other means. We will provide you with the most suitable solution and also offer professional Dailux reports.
