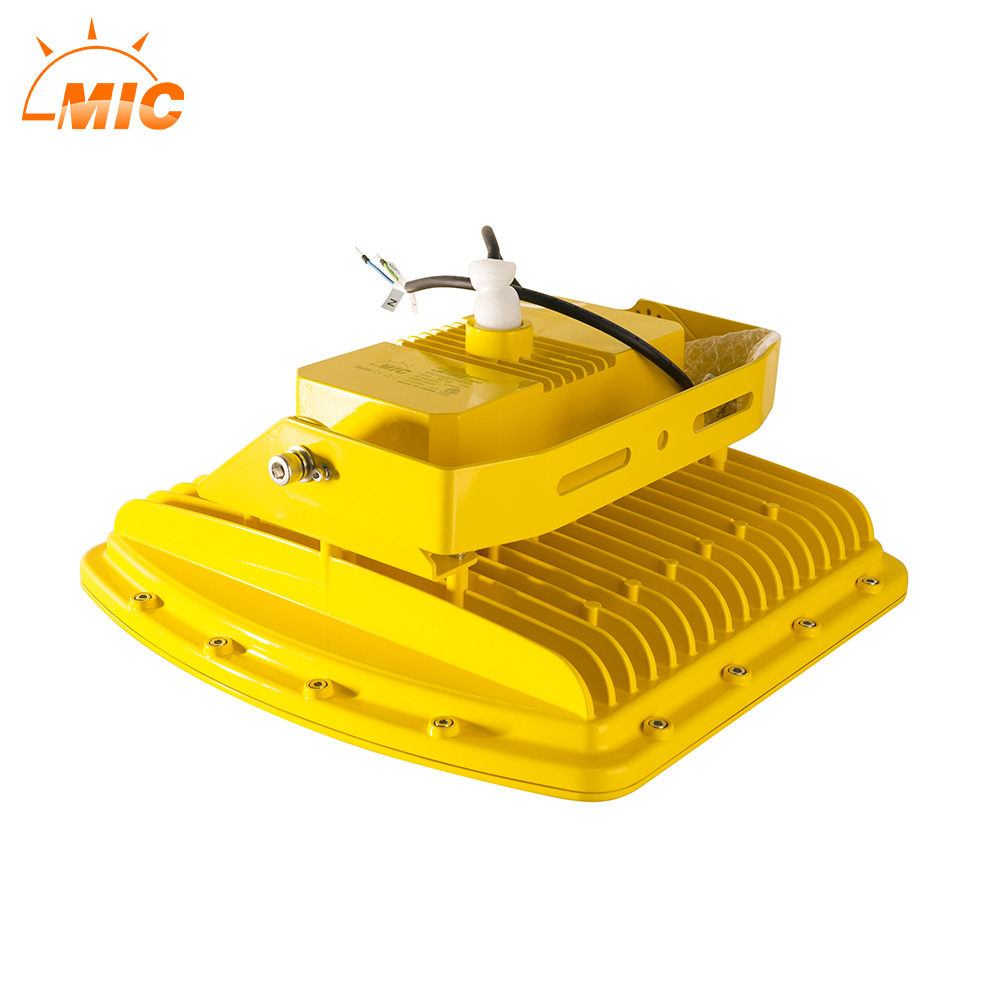

Explosion proof led floodlight 120w 150w 180w 200w Factory EX certificate
ATEX：12G Ex eb mb op is IIC T4 Gb; 12DExop is tb IC T95°C Db;
Quick info
Product size: 400*400*169mm Catron size: 470*470*250mm Net weight: 10.5kg/23.1lbs Gorss weight: 12kg/26.4lbs
•Patent designed to be Curved Fin Shape,maximize the best heat transmit.
• Aluminum alloy (ADC12).
• Lens -tempered glass (8mm) shock & vibration resistant, Super clear, >90% light transmit.
•LED: LM80 certified, 130 Im/ +5, up to 26000lm.
•Meanwell LED Driver,>90% driver efficacy.
• Circuit design: 4KV/6kV Surge Protection power supply.
•Protection: 1P66, high protection grade for waterproof and dust-proof.
Application
Wastewater treatment, oil and gas refineries, drillingrigs, offshore platforms, petrochemical facilities, chemical plants, coal mines, aviation bases, food plant, Pharmaceutical plant, beverage facilities, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
- Description
- Specification
20w 30w 40w 60w 80w 100w 120w 150w 180w 200w
| Model | MIC-EX-20 | MIC-EX-30 | MIC-EX-40 | MIC-EX-60 |
| Power | 20W | 30W | 40W | 60W |
| N.W/G.W | 4kg / 5kg | 4kg / 5kg | 4kg / 5kg | 7kg / 9kg |
| Product size | 200*200*147mm | 200*200*147mm | 200*200*147mm | 300*300*165mm |
| Carton size | 250*250*212mm | 250*250*212mm | 250*250*212mm | 375*375*245mm |
| Model | MIC-EX-80 | MIC-EX-100 | MIC-EX-150 | MIC-EX-200 |
| Power | 80W | 100W | 150W | 200W |
| N.W/G.W | 7kg / 9kg | 11kg / 12kg | 11kg / 12kg | 11kg / 12kg |
| Product size | 300*300*165mm | 400*400*169mm | 400*400*169mm | 400*400*169mm |
| Carton size | 375*375*245mm | 470*470*250mm | 470*470*250mm | 470*470*250mm |
| led chip brand | SMD 3030 | CCT | 2700-6500k |
| IP | IP67 | Beam Angle | 60°x30°(RF)/120°x120° |
| Driver | Meanwell | Warranty period | 5 years |
| Working TEMP | -40~+60 | LED life time | 50000h |
Explosion proof led floodlight
MIC EX explosion-proof floodlight is more than 50,000 hours lifespan, and the maintenance is reduced to 30% of the double input cost of the traditional lighting system. At the same time, it features a well-de- signed optical system, high luminous efficiency and a variety of beam Angle options. ADC12 die-cast aluminum, 8mm tempered glass has better shock and vibration resistance. There are a variety of instal- lation methods for your different projects. UL1598A North American marine anti-corrosion can be used in marine application and hazardous areas Zone 1&21, Zone 2822.
Application Wastewater treatment, oil and gas refineries, drilling rigs, offshore platforms, petrochemical facilities, chemical plants, coal mines, aviation bases, food plant, Pharmaceutical plant, beverage facilities, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
 |
 |
 |
 |
 |
 |
