MFL-G960-B-floodlight
MFL-G960-B-floodlight
MFL-G960-B-floodlight
MFL-G960-B-floodlight
MFL-G960-B-floodlight
MFL-G960-B-floodlight

1000 Watt flood light led

MIC MFL-G960-B

معلومات سريعة

960W or 1000W flood light, 8 modules, 160lm/W, meanwell driver, price USD488

MFL-G960-B Specification download

السابق اقتبس الآن التالي: لا توجد صفحة تالية
  • وصف
  • تخصيص

mfl-g-b led flood light

1000 Watt Flood Light LED are mainly used in single buildings, exterior wall lighting of historical buildings, building interior and
exterior lighting, green landscape lighting, billboard lighting, medical and cultural and other special facilities lighting, bars,
stadiums, stadiums, squares , Railway stations, ships, construction sites, tower cranes, and other lighting.

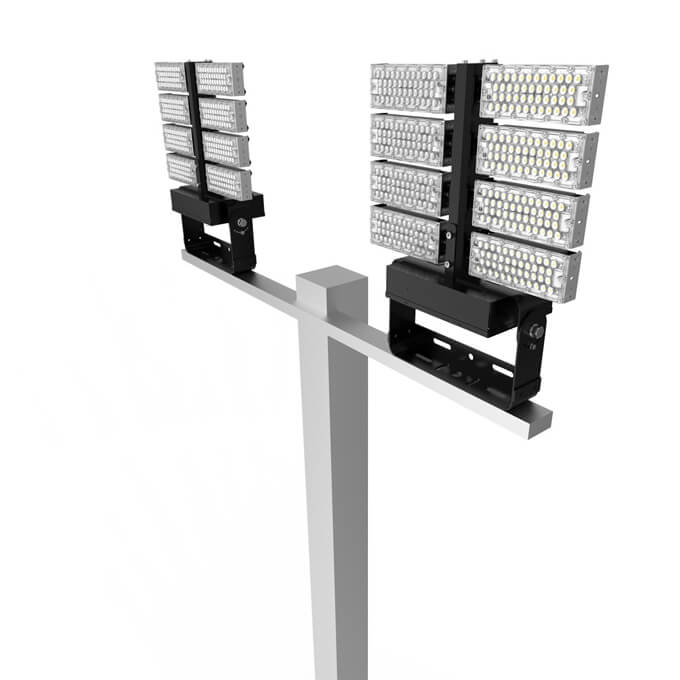

1000 Watt Flood Light LED Module design high pole light projector for high power stadium lighting

  • براءات الاختراع العفن الخاص ، المتكامل الصب.
  • The most obvious feature compared to other floodlights is that each module has an additional horizontal adjustment angle.
  • كفاءة عالية ، 200LM/W المتاحة.
  • Professional anti-glare lens:PC full cutoff lens 20°/40°/60°/90°/100°x140°.
  • 0/1-10V التعتيم ، والتحكم في الوقت ، واستشعار الضوء ، والتحكم في إنترنت الأشياء والوظائف الأخرى اختيارية.
  • It is easier to install with laser pen assisted direction.
  • مستوى الحماية هو IP66/IK08.

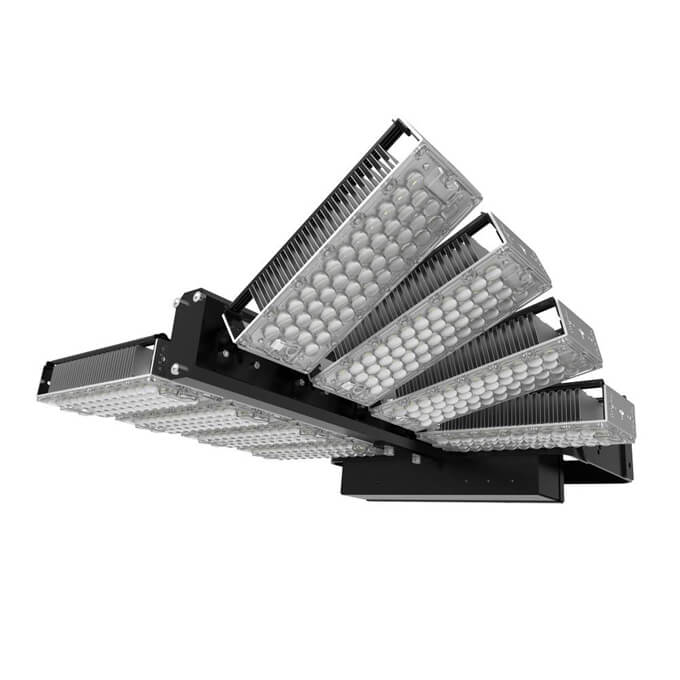

  • The angle of each module and the angle of the entire lamp can be adjusted.
  • لوحة زجاجية تشديد ، ثابت دون الغراء.
  • PLC or Lorawan can be used for remote intelligent control.
  • Meanwell/MOSO/Sosen/Inventronics Driver.

Motorcycle Kart Racing Track LED flood light project

Motorcycle Kart Racing Track LED flood light project

MFL-G-B series flood light case of Motorcycle Kart Racing Trackotball stadium lighting in malaysia.

Click to download the flood light certificate

شهادة

LM-79 ، LM-80 ، LM-82 ، UL 1598 ، IEC 60598 ، IESNA ، CIE ، ANSI ، NEMA ، ANSLG C78.377-2008 ، JEDEC ، ASTM ، ISO 9227 ، IEEE Std 519 1992 ، IMC ، IK08 ، IK10 ، IP66 ، ICEN 62471 ، ROHS ، CB ، ENEC ، SASO ، SABER ، IECEE ، LABELS ، ISO45001 ، ISO9001 ، ISO14001 ، TM21 ، IP66

فرض المعايير

IEC 60598 ، IEC 60068 ، IEC 62471 ، IEC 60529 ، EN 55015 ، EN 60529 ، EN 50102 ، EN 61347 ، EN61384 ، EN 61547 ، EN 62493 ، IEC 62262 ، EN61000 ، EN 61547 60068 ، ISO2039 ، ISO6508 ، IEC 62031 ، IEC 62778 ، TR 62778 ، IEC 62493 ، IEC 60384 ، IEC 60065 ، IEC 61032 ، IEC 60570 ، IEC 60664 ، IEC 61347 ، IEC 60227 ، IEC 60245 ، 62680 ، IEC 60320 ، IEC 61535 ، IEC 61984 ، IEC 60083 ، IEC 62209 ، IEC 62232 ، IEC 62493 ، EN 50525 ، IEC 62321 ، IEC 61643 ، IEC 60112 ، EN 60598-2-3: 60598-2-3 ، IEC 60598-1 ، IEC 55015 ، IEC 61000 ، IEC61547



1000 Watt Flood Light LED IP66/IK08 20KV spd LoRaWan, 0/1-10V dimming, time control, light sensing, iot control smart intelligent automation system

mfl-g1440-b floodlight packing box

mfl-g1440-b floodlight lighting show

mfl-g1440-b floodlight packing box

The picture above is the packing box and lighting effect of MFL-G1440-B flood light, the following is a detailed introduction to this flood light.

Hoods, spotting hoods, can change the angle of light and lower the UGR value, increasing the brim of the hat will have an additional cost increase.

Each module can be adjusted individually, and the angle of the stand can also be adjusted individually.

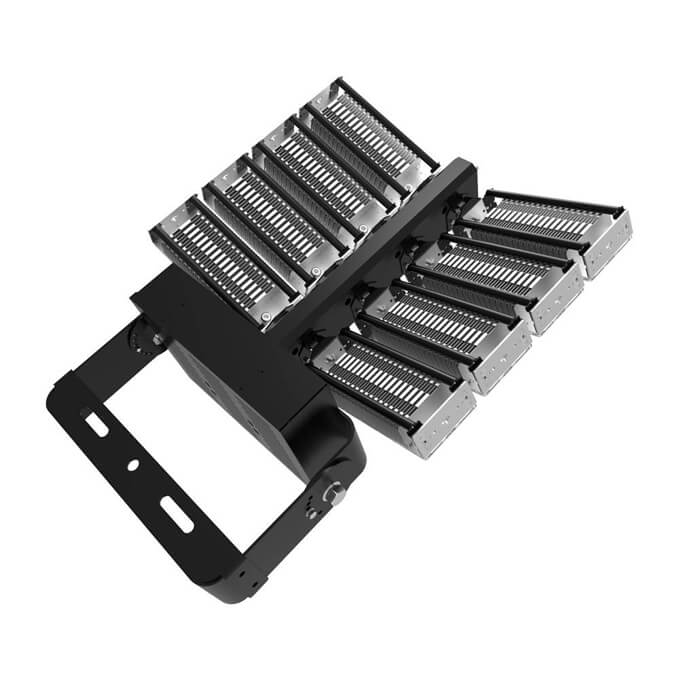

The dense heat dissipation fins can quickly dissipate the heat. Reduce the temperature of the LED beads

PC Lens, we choose high light transmittance and good quality. There are 25/40/60/90 degrees different angles to choose from

MFL-D floodlight PC-lens

MFL-D floodlight meanwell driver

Use MeanWell brand power supplies. You can also choose other power supply brands such as sosen, moso, etc. And 10KV or 20KV SPD is optional.

كفاءة عالية ، 200LM/W المتاحة.

24-48 ساعة اختبار الشيخوخة.

MFL-G1200-B light show

If you don't know how to choose the lamps you need, you can contact us through email, message,whatsapp or other means. We will provide you with the most suitable solution and also offer professional Dailux reports.

In For other similar flood lights, click here

نموذج رقم. MFL-G720-B MFL-G960-B
استهلاك الطاقة 720W Flood light 960W Flood light
NW / الحجم 25.6kg/548*694*110mm 30.5kg / 680*694*110mm
تدفق مضيئة > 115200 ل > 153600 لومن
packing 772*628*421mm 772*760*421mm

نموذج رقم. MFL-G1200-B MFL-G1500-B
استهلاك الطاقة 1200W Flood light 1500W Flood light
NW / الحجم 34.5kg/812*694*110mm 38.5kg / 944*694*110mm
تدفق مضيئة > 192000 لومن >230400LM
packing 892*772*421mm 1024*772*421mm

كفاءة مضيئة >160lm/w زاوية الشعاع 20/40/60/90/120/100*140°
عامل القوى ≥0.90 يصيح، يصرخ، صيحة Ra>80
مستوي رقم التعريف الألكتروني IP65 مساهمة الجهد AC85-305V
فترة الحياة 50000 ساعة color temperature 2700-6700K
زاوية الشعاع 20/40/60/90/120/100*140° الصف IP IP65
CCT 2700-6500 ك معدل PF > 0.95
كفاءة مضيئة >160lm/w يصيح، يصرخ، صيحة > 80
فترة الحياة 50000 ساعة مساهمة الجهد AC85-305V
