    L Series High Bay Lights

    Short Description:


  • Brand Name: mic-led.
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Certification: CB CE RoHS TUV ERP UL FCC etc
  • Payment Item: TT, Paypal, western union,LC
  • PF: >0.95
  • Product Detail

    Parameter

    Use

    Product Tags

    L series high bay with Four easy installation methods-tube/hook ring/E40 thread base/Adjustable bracket, Curved design for better heat dissipation performance, 25°/60°/100°different reflector beam angle optional.

    Specification

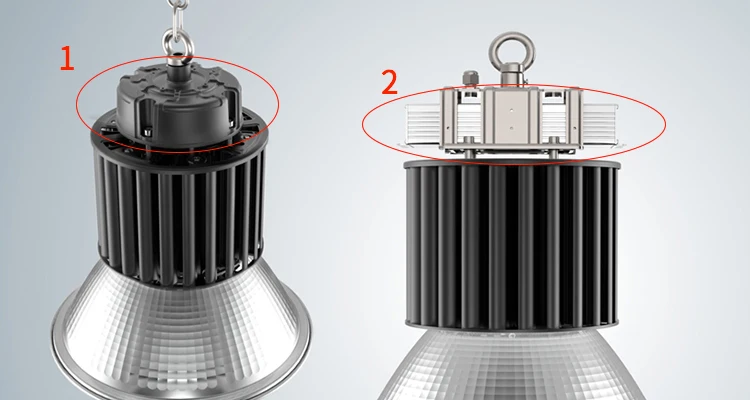

    1, Round diver box version                    2, Square driver supply version.

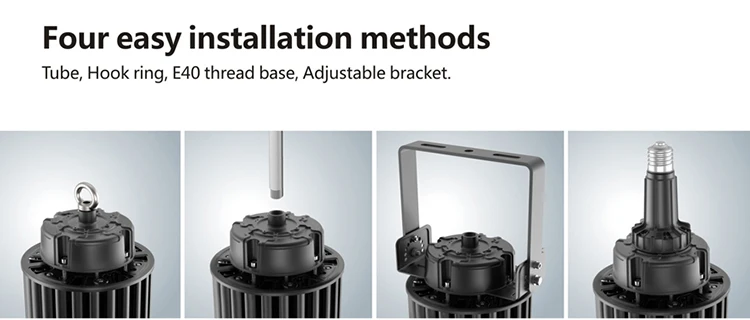

    Four easy installation methods

    1. Tube;   2. Hook ring;  3. Adjustable bracket.   4. E40 thread base.

    Model NO.
    MHB-L60
    MHB-L100
    Power Consumption
    60w High Bay Light
    100w High Bay Light

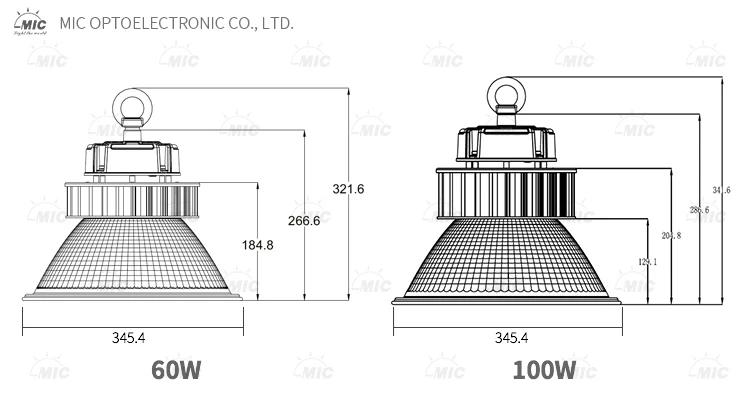

    NW/Size
    4.8kg/H322*D345mm
    5.5kg/H342*D345mm
    Luminous Flux
    >6600LM
    >11000LM
    Model NO.
    MHB-L150
    MHB-L200
    Power Consumption
    150w High Bay Light
    200w High Bay Light

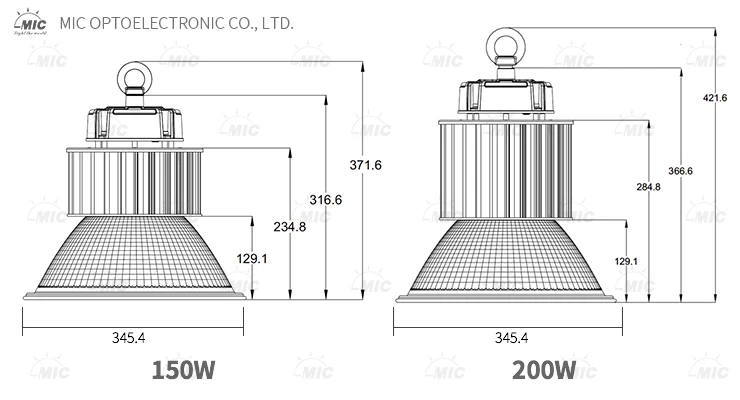

    NW/Size
    6.9kg/H372*D345mm
    7.8kg/H422*D345mm
    Luminous Flux
    >16500LM
    >22000LM
    Beam Angle
    20°, 60°,100°
    IP Grade
    IP54
    CCT
    2700-6500K
    PF Rate
    >0.95
    Material
    Die-casting Aluminum+PC cover
    CRI
    >80
    Life span
    50000h
    LED lamp
    SMD 3030
    Luminous flux
    110lm/w
    Guarantee
    3 years

    LED lamp

    LM80 stanrd,CRI>80.
    High lumen SMD3030 LED chip.
    Luminous efficient >110lm/W, long lifespan.



    Fixed by rotatory buckle, easily installed

    without tools

    The reflector could be disassembled and transported

    separately;

    with small size heaksink, is able to reduce at least 50% of

    the freight charges under the same conditions.

    Curved design for better heat dissipation

    performance

    The curved design increase the cooling area that dissipate

    the heat quickly.

    Two types cover option

    Frosted & transparent PC cover, with high light

    transmittance, good flame-retardance, wear-resistance

    and oxidation resistance.

    MIC Led corn light certifcated with ETL,FCC,CE,ROHS,TUV, Popular used for replace warehouse high bay and street bulb,

    using in petrol station, garden, super market, shop etc.
