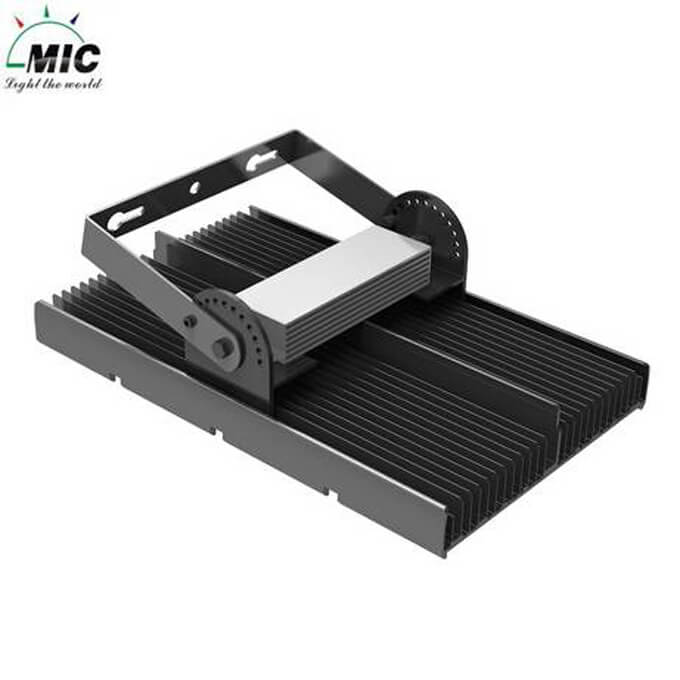

  • 180w led tunnel light

    Short Description:


  • Brand Name: mic-led.
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Certification: CB CE RoHS TUV ERP UL FCC etc
  • Payment Item: TT, Paypal, western union,LC
  • PF: >0.95
  • Product Detail

    Parameter

    Use

    Product Tags

    MIC LED Tunnel light:

    MT-B60 ( 60w led tunnel light )             MT-B120 (120w led tunnel light )

    MT-B180 ( 180w led tunnel light)             MT-B240 (240w led tunnel light )

    LED Tunnel Light, is a new, energy-saving product that utilizes high power led’s as light source, MIC LED, it can be directly connected with a 100-240VAC power supply and can also be powered with the optional solar panel kit. The LED color spectrum, there is no ultraviolet light, no infrared rays, no heat, and no radiation produced. As a result, our LED Tunnel Light series are a conventional “green” lighting source.

    1.  Revolutionary Photometric Design- The world’s first dedicated optical system (rectangular beam focusing lens). Reasonable control of the light distribution, spot rectangular bean pattern, and ensure an ideal uniformity of brightness on the road surface;

    2. Unique Integrated Lens and Lampshade Design- Array Lens play a protective and spot light role, avoid wasteful duplication of light and reduce the loss of light, also reduce the weight of the product and enable simplified structure;

    3. Creative Design of the Radiator and Lampholder Integration - Fully protect LED life and heat dissipation requirements, satisfied with the structure and design of LED Lights fundamentally, with the most distinctive features of LED Lights(see attached picture);

    4. Direct Replacement Light Source Design - Direct replace the existing high-pressure mercury lamp, high pressure sodium lamp, metal halide lamps, no need to change the original lamp shell;

    5. Intelligent Current Control - Intelligent current control, whatever any deviant situation, it is able to achieve the precision constant current, ensure the LED can work under the secure current;

    6. No Light Pollution - Light Distribution designed for road lighting, in addition to illuminate the path and will not illuminate the road outside the region. Eliminate the interference signal by the residents of the light into the rest room;

    7. No High-voltage, No Dust Adsorption - Eliminate the high-voltage adsorb the dust cause the lampshade become dark, reduce the brightness;

    8. Long Life, Up To 50,000 Hours - (Working for 10 hours a day, can be used for more than 13 years), is 5-10 times working life than a traditional sodium or mercury lamp;

    AA-1


  • Previous:
  • Next:

  • LED tunnel light 18w specification:

    产品名称

    LED tunnel light 180w

    产品型号

    MT-B180

    光源

     Bridgelux Lumileds 1W LED

    LED数量

    96PCS x 1W

    LED发光效率

    135-145lm/W

                           整灯光效

    100lm/w

    灯具额定功耗

    180W

    电源效率

    >86%

    灯具额定光通量

    18000 lm

    显色指数(CRI)

    Ra > 75

    色温(CCT)

    Warm White: 2700-3500K

    Pure White: 4000-4500K

    Cool White: 6000-6500K

    发光角度

    Horizontal Axis: 100°; Vertical Axis: 90°

    配光曲线(光斑)

    Retangle

    输入电压

    AC 90-305V

    电源频率

    47-63Hz

    功率因数(PF)

    ≥0.95

    总谐波失真(THD)

    <15%

    储存温度

    -40℃- +80℃

    工作温度

    -40℃- +50℃; 10% – 95% RH

    工作寿命

    > 50,000 hours

    防护等级

    IP66

    灯体材料

    Aluminum Alloy and Toughened Glass

    净重

    4.6kgs

    毛重

    6.8kgs

    产品尺寸 (mm)

    298*430*145

    包装尺寸 (mm)

    340(L) x 350(W) x 170(H) (1 PC)
